80 Camera Module
Replacing the Camera Module
1 Follow the instructions in "Before You Begin" on page 9.
2 Connect the camera cable to the connector on the camera module.
3 Adhere the tape that secures the camera cable to the camera module.
4 Use the alignment posts to place the camera module on the display back
cover.
5 Replace the display bezel (see "Replacing the Display Bezel" on page 60).
6 Replace the display assembly (see "Replacing the Display Assembly" on
page 58).
7 Replace the keyboard (see "Replacing the Keyboard" on page 45).

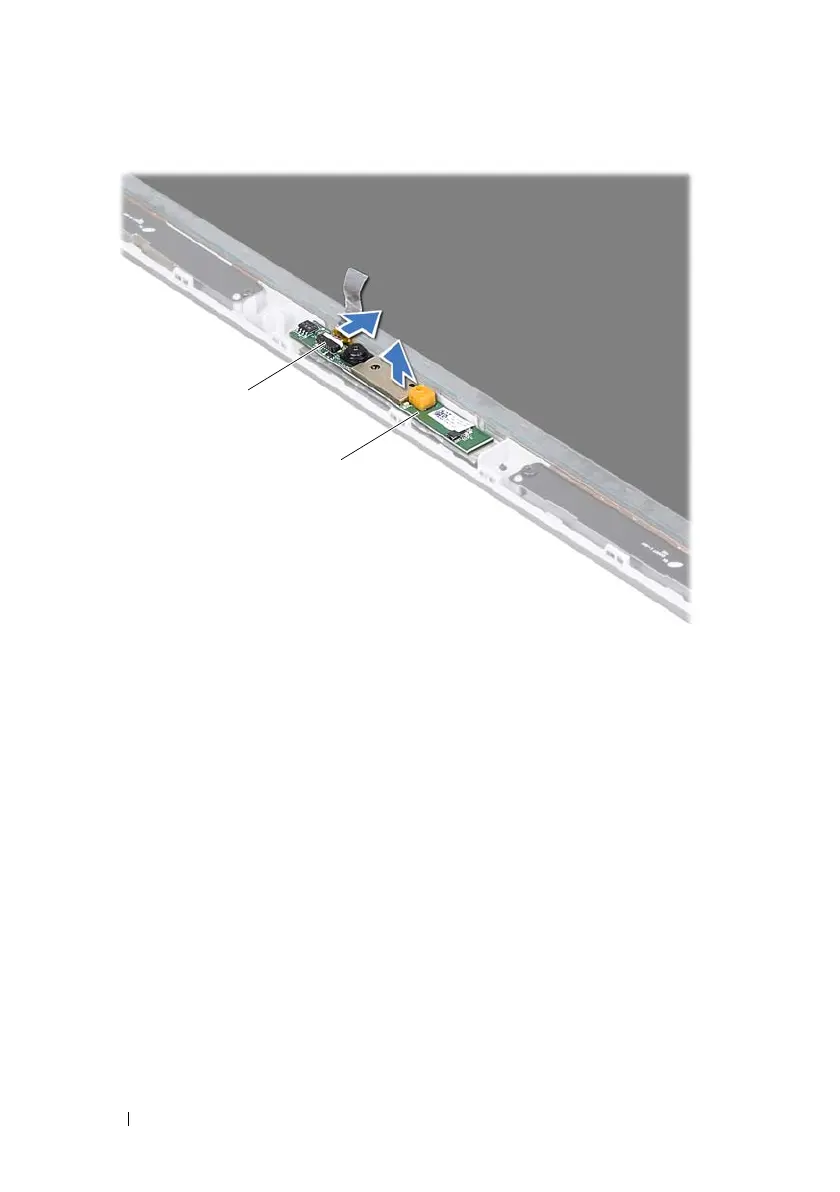

1 camera-cable connector 2 camera module
