Dell P09E002 - Replacing the AC-Adapter Connector

96 AC-Adapter Connector
11 Follow the instructions from step 9 to step 14 in "Removing the Top
Cover" on page 83.
12 Turn the top-cover assembly over.
13 Make note of the AC-adapter connector cable routing and remove the
cable from the routing guides.
14 Disconnect the AC-adapter connector cable from the system-board
connector.
15 Remove the screw that secures the AC-adapter connector to the top cover.
16 Lift the AC-adapter connector off the top cover.
Replacing the AC-Adapter Connector
1 Follow the instructions in "Before You Begin" on page 9.

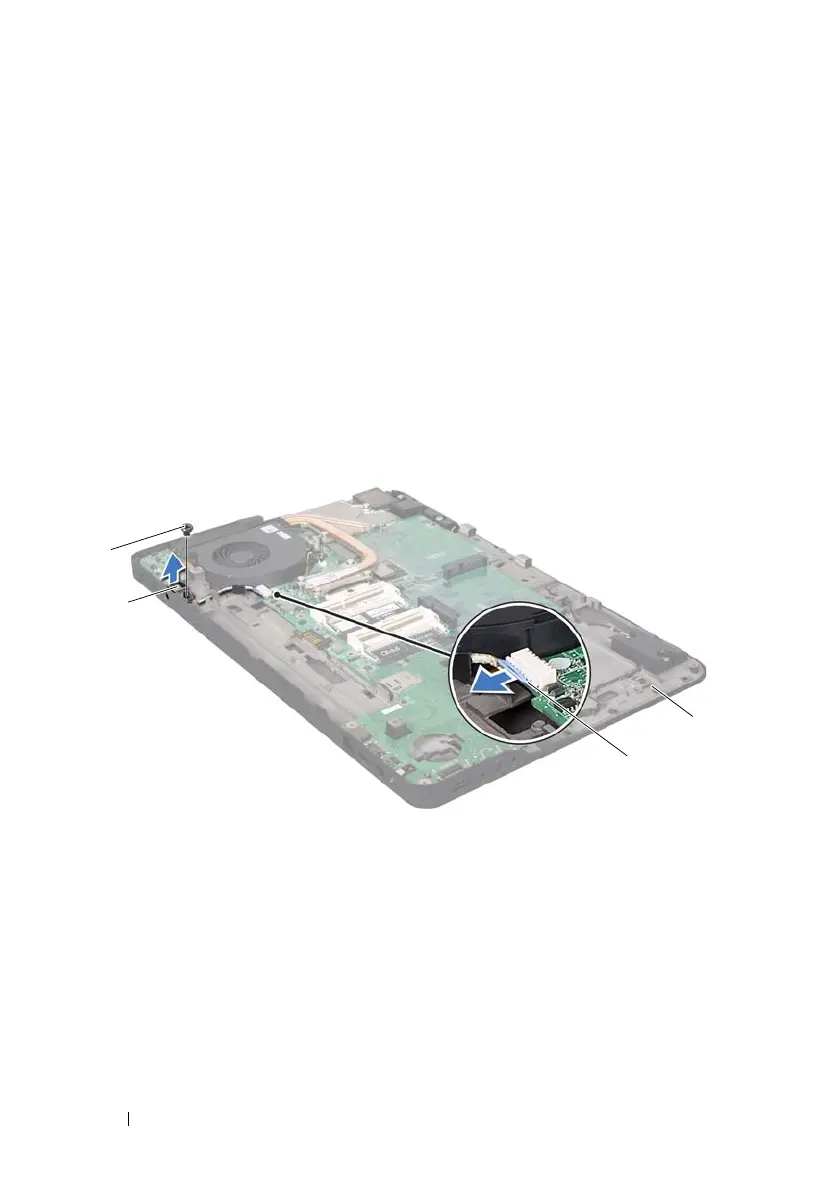

1 screw 2 AC-adapter connector
3 AC-adapter connector cable 4 top cover
