Top Cover 85

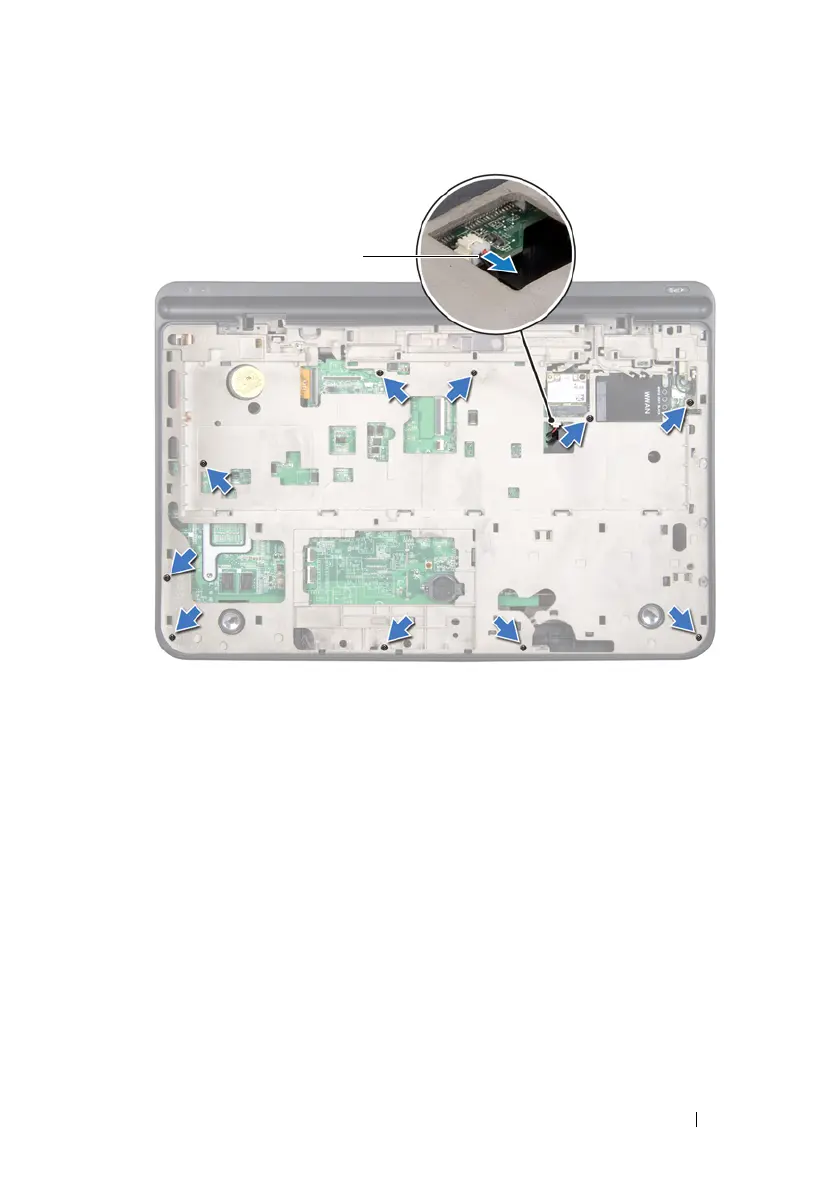

Using your fingertips, gently ease the top-cover assembly from the base

cover.

Lift the top cover assembly off the base cover.

subwoofer cable

book.book Page 85 Wednesday, April 25, 2012 2:11 PM
