84 Top Cover

Turn the computer over.

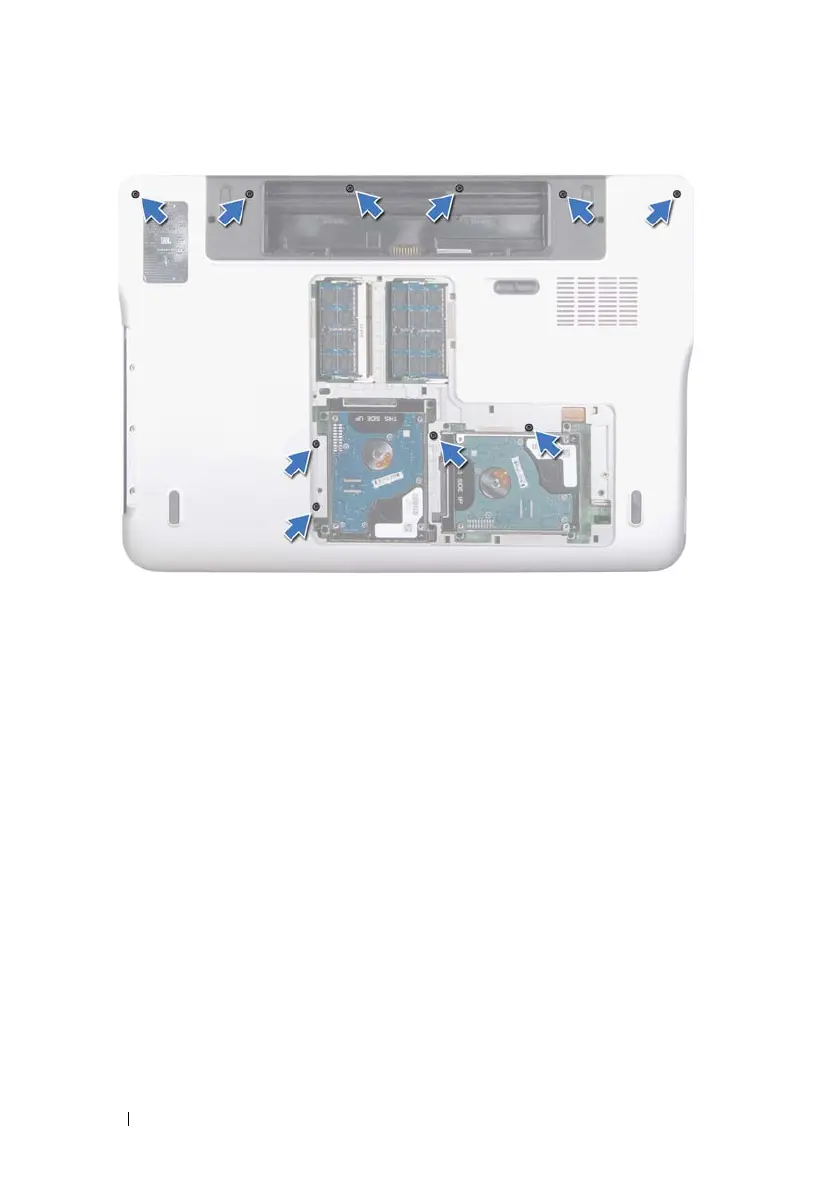

Remove the ten screws that secure the top-cover assembly to the base

cover.

Disconnect the subwoofer cable from the system-board connector.

book.book Page 84 Wednesday, April 25, 2012 2:11 PM
