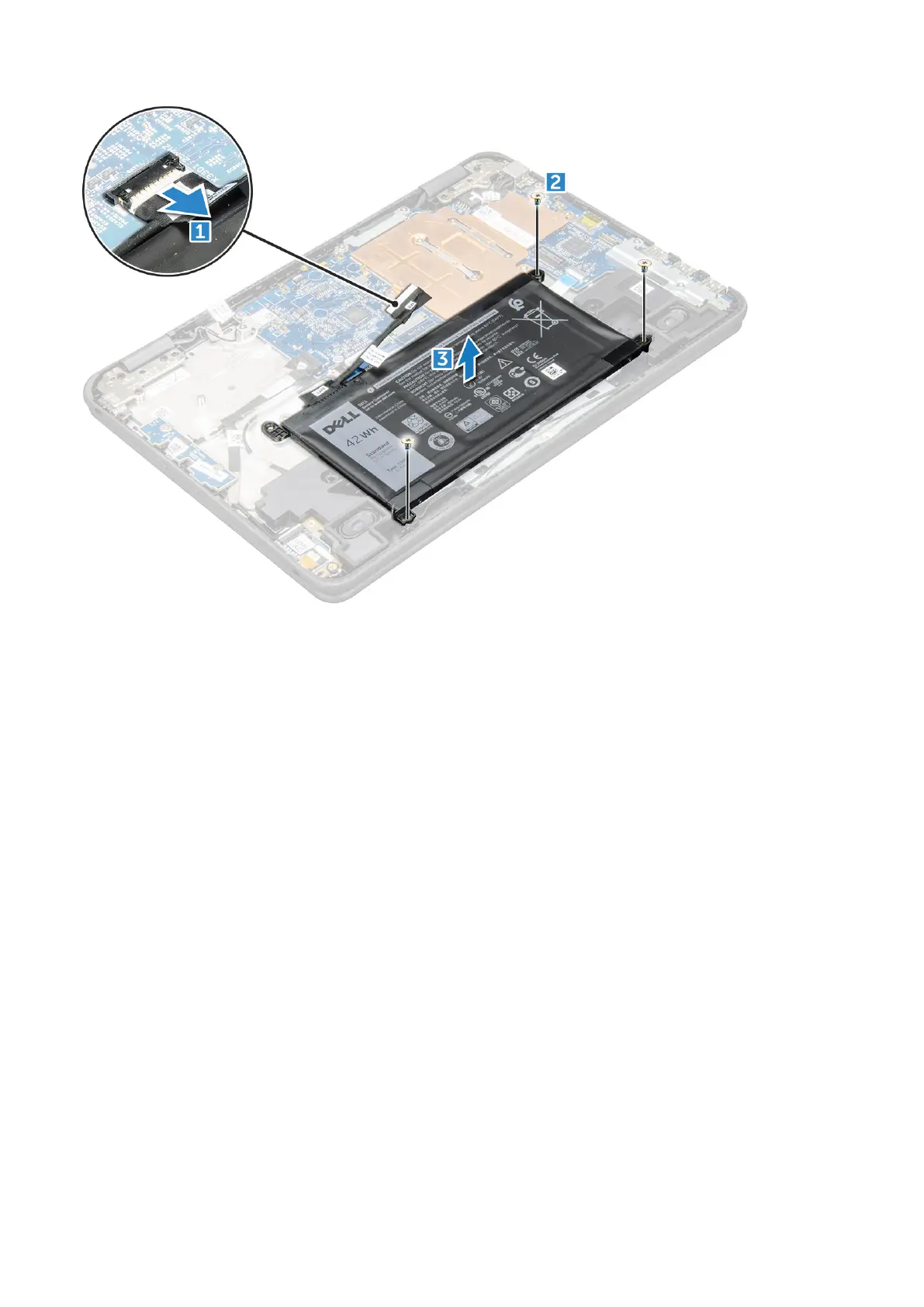

Installing battery
1. Insert the battery into the slot on the computer.
2. Connect the battery cable to the connector on the battery.
3. Replace the M2x3 screws to secure the battery to the computer.
4. Install the:
a. base cover
b. microSD card
5. Follow the procedure in After working inside your computer.
Keyboard lattice and Keyboard
Removing keyboard
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
c. battery
3. To remove keyboard:
a. Disconnect the keyboard cable from the system board [1].
b. Use the plastic scribe to the release the keyboard [2].
10
Disassembly and reassembly
