Installing base cover
If the system is shipped with M.2 SSD perform the following steps.

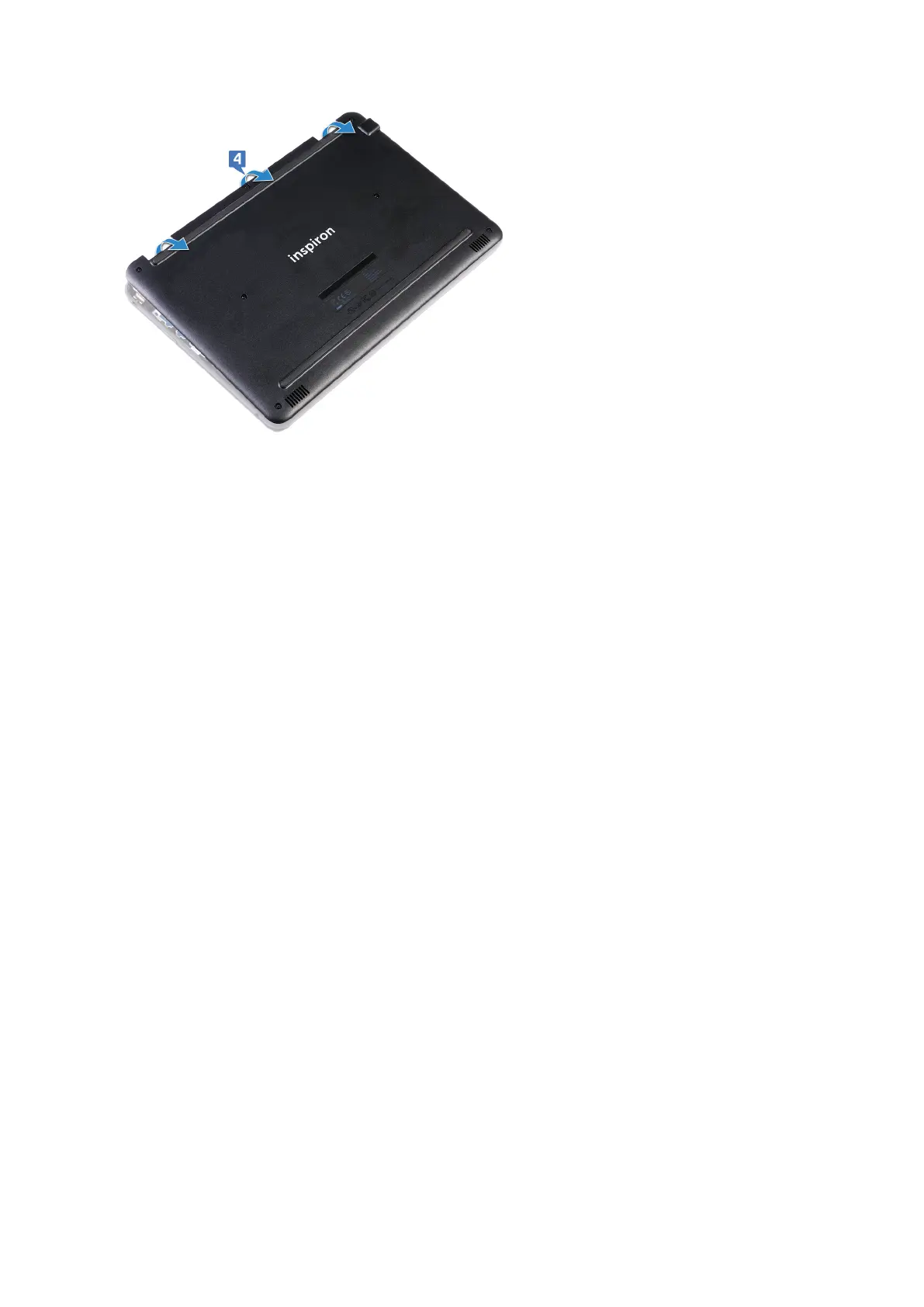

1. Toe in the base cover front edge into the system.
2. Press the edges of the cover until it clicks into place.
3. Replace the M2.5x7 screws to secure the base cover to the computer.
4. Install the microSD card
5. Follow the procedure in After working inside your computer.
Battery
Removing battery - optional
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
3. To remove the battery:
a. Disconnect the battery cable from the connector on the system board [1,2].
b. Remove the M2.0x3.0 screws that secure the battery to the computer [3].
c. Lift the battery away from the computer [4].
Disassembly and reassembly
9
