Installing speakers

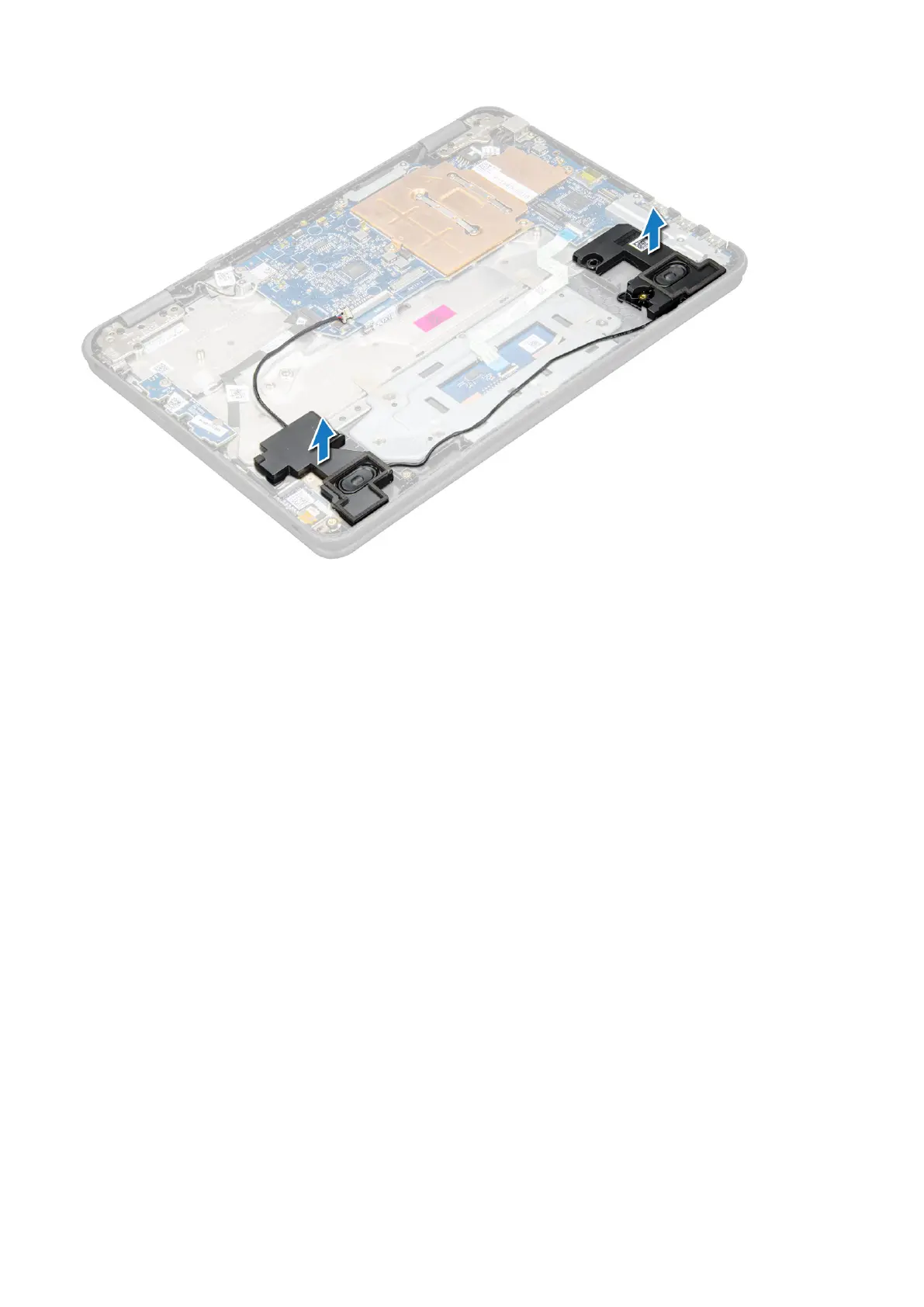

1. Place the speakers into the slots on the computer.
2. Route the speaker cable through the retention clips through routing channel.
3. Affix the adhesive tape to secure the speaker cable on the computer.
4. Connect the speaker cable to the connector on the system board.
5. Install the:
a. battery
b. base cover
c. microSD card
6. Follow the procedure in After working inside your computer.
Display assembly
Removing display assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
c. battery
3. To remove cables:
a. Remove the screw M2.0xM3.0 and lift the metal bracket that secures the WLAN card on the system board [1, 2]
b. Disconnect the WLAN cables [3].
c. Remove the screws M2.0xM3.0 and lift the metal bracket that secures the display cable on the computer [4, 5]
d. Lift the latch, and disconnect the cable [6]
18
Disassembly and reassembly
