Installing power connector port
1. Insert the power connector port into the slot on the computer.
2. Replace the two M2x3 screws that secure the power connector port to the computer.
3. Connect the power connector cable to the connector on the system board.
4. Install the:
a. battery
b. base cover
c. microSD card
5. Follow the procedure in After working inside your computer.
Speaker
Removing speaker
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
c. battery

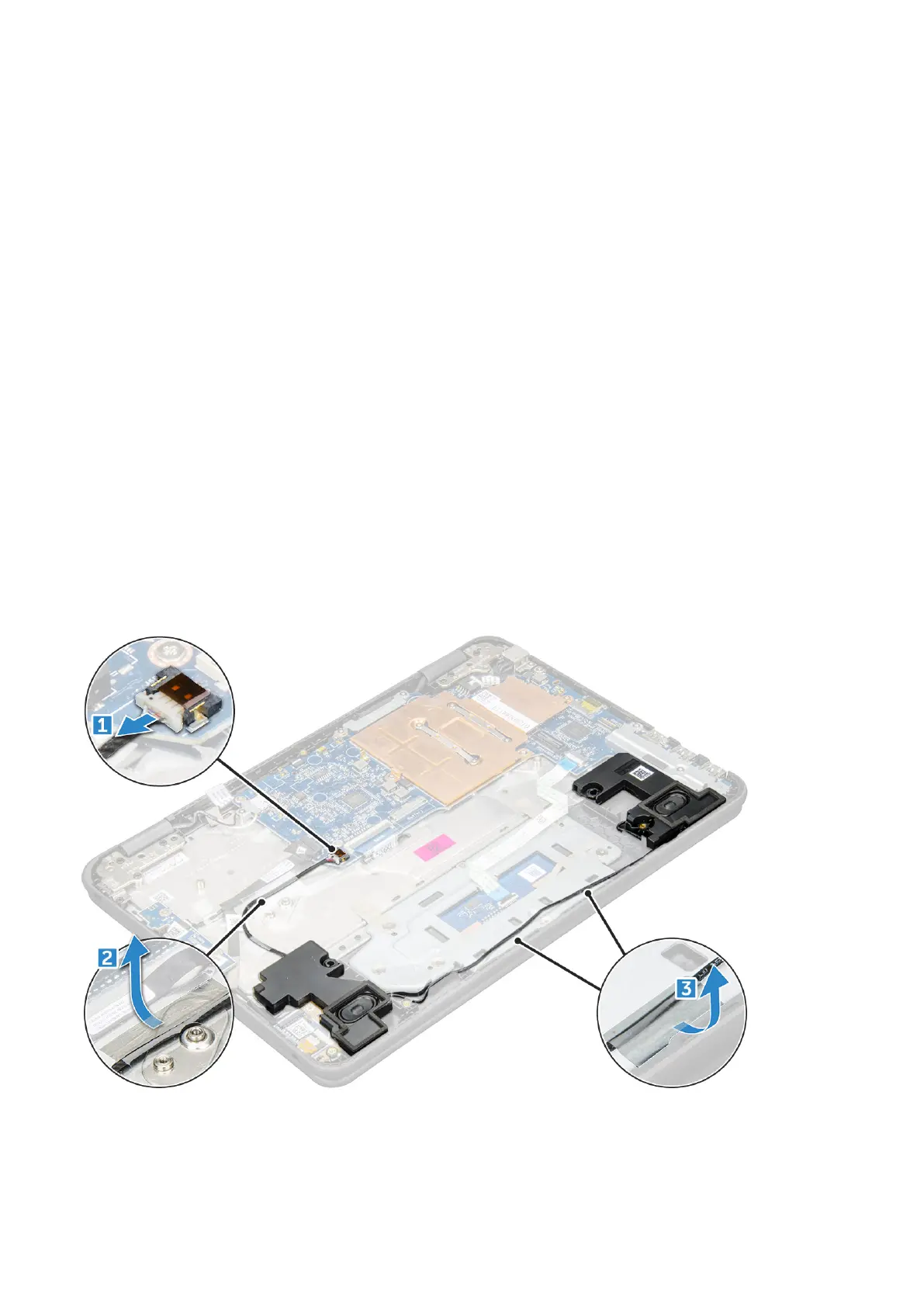

3. To remove the speaker:
a. Disconnect the speaker cable from the connector on the system board [1].
b. Remove the adhesive tape that secures the speaker cable on the computer .
c. Unroute the speaker cable from the routing channel [3].
4. Remove the speaker from the computer.
Disassembly and reassembly
17
