b. base cover
c. microSD card
4. Follow the procedure in After working inside your computer.
Power switch board
Removing power switch board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
c. battery

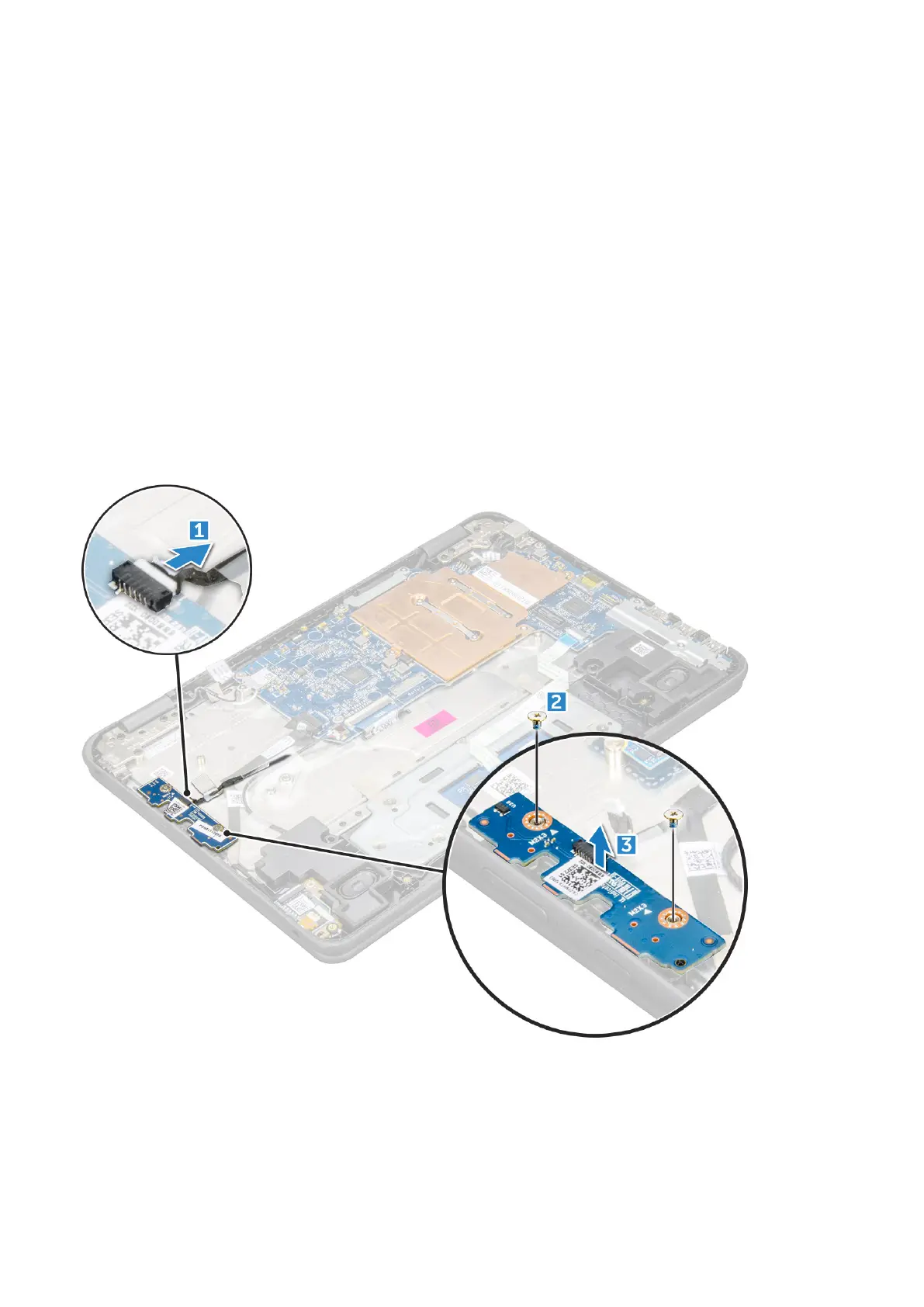

3. To remove the power switch:
a. Disconnect the power switch cable from the power switch board [1].
b. Remove the M.2.0x3.0 screws that secure the power switch board on the computer [2].
c. Lift the power switch board away from the computer [3].
Installing power switch board
1. Align the screw hole on the power switch board with the screw holders on the slot of the computer.
2. Replace the two M2x3 screws that secure the power switch board to the computer.
3. Connect the power switch cable to the connector on the power switch board.
