Installing display back cover

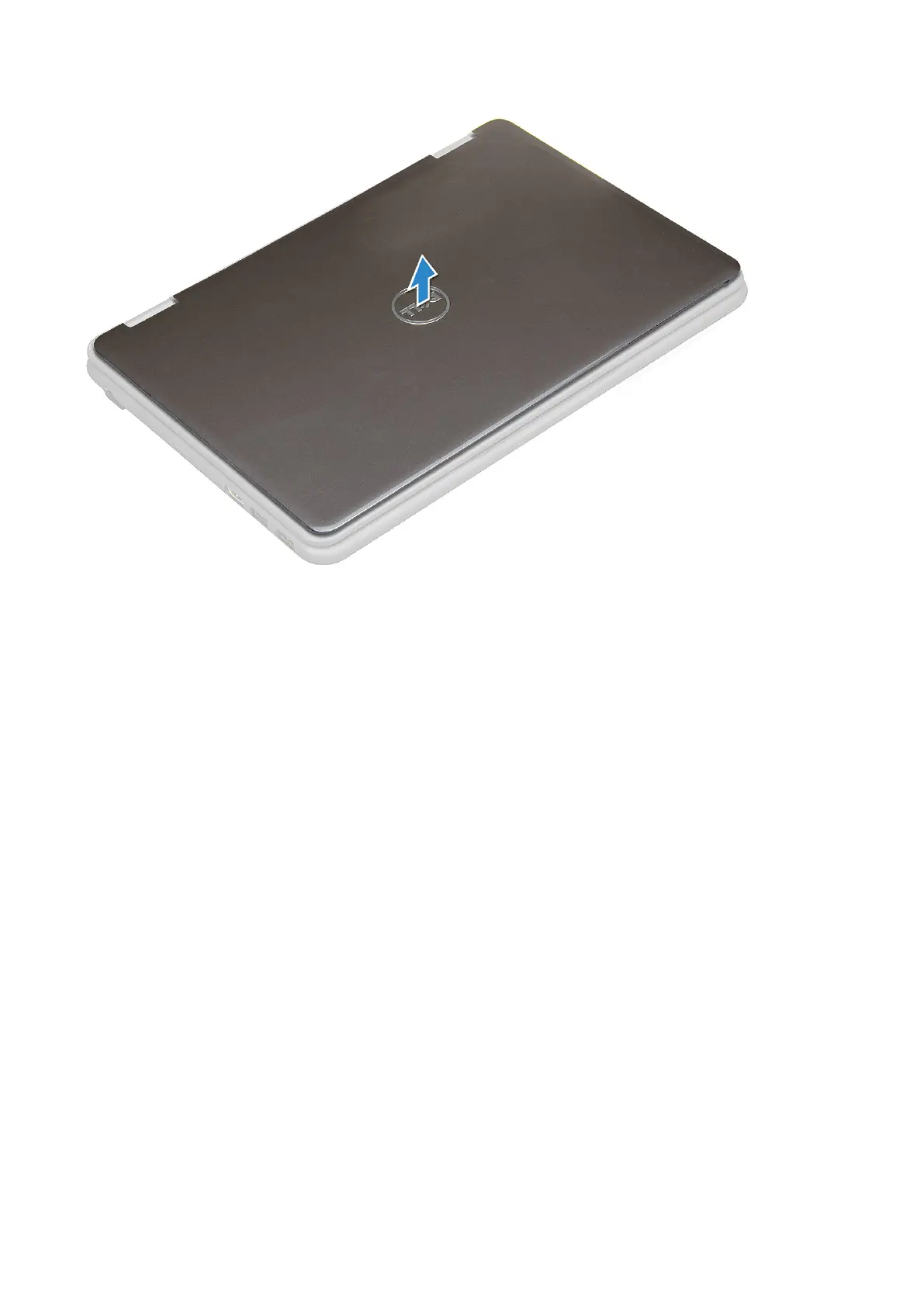

1. Align the display back cover with the tabs on the computer, and press it until it clicks into place.
2. Follow the procedure in After working inside your computer.
System board
Removing system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
c. battery
3. Disconnect the following cables:
a. sensor cable [1]
b. power board and audio cable [2]
c. speaker cable [3]
d. keyboard cable [4]
e. touch pad cable [5]
f. power connector cable [6]
4. To remove metal bracket on the system board:
a. Remove the screws on the metal bracket that secures the system board [1].
b. Lift the metal bracket off the system board [2].
22
Disassembly and reassembly
