2. Replace the M2x3 screw that secure the audio board to the computer.
3. Connect the audio cable to the connector on the audio board.
4. Install the:
a. battery
b. base cover
c. microSD card
5. Follow the procedure in After working inside your computer.
Power connector port
Removing power connector port
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. microSD card
b. base cover
c. battery

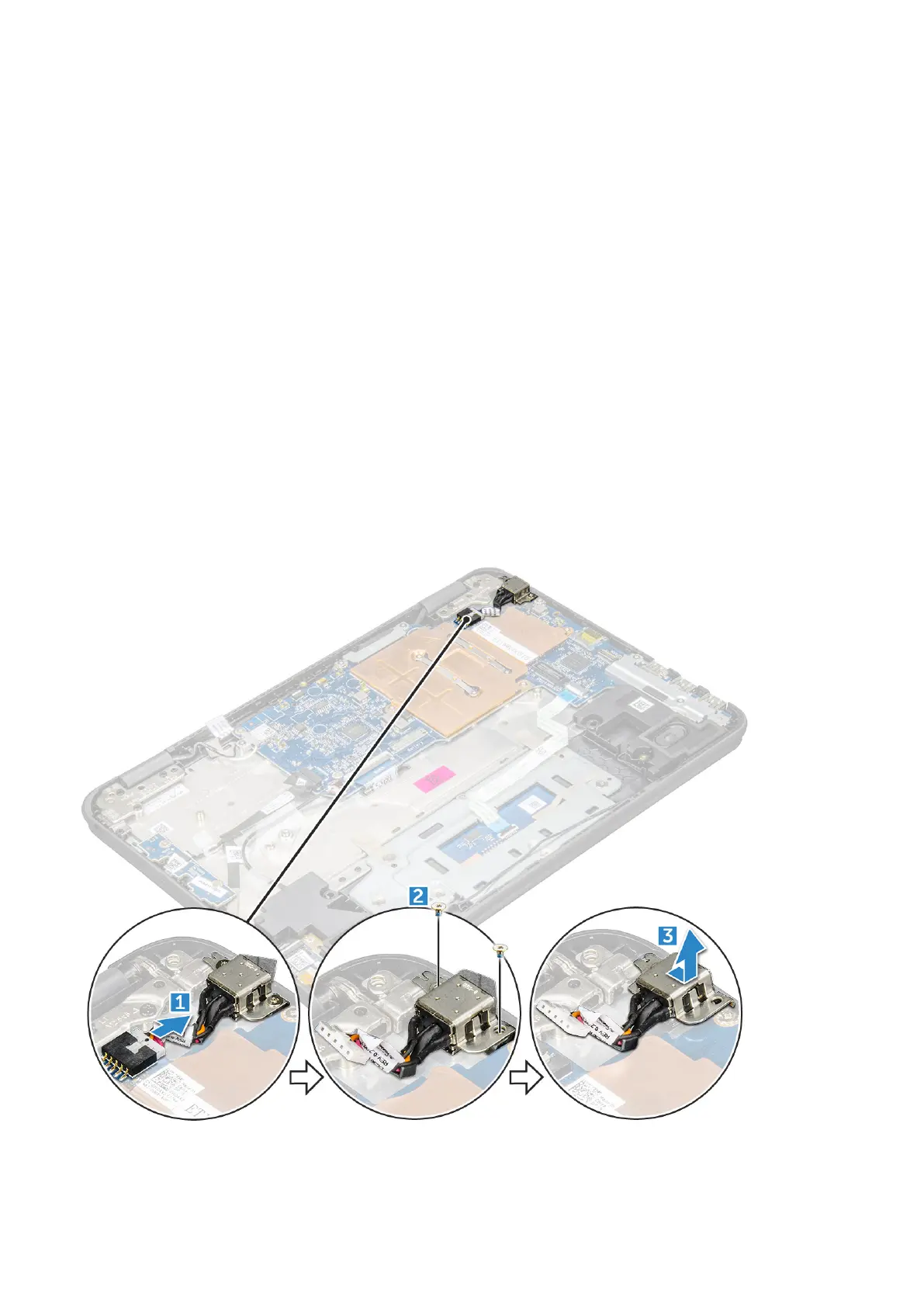

3. To remove the power connector port:
a. Disconnect the power connector cable from the connector on the system board [1].
b. Remove the M.2.0x3.0 screws that secure the power connector port on the computer [2].
c. Slide and lift the power connector port away from the computer [3].
16
Disassembly and reassembly
