Dell P48F - Installing the WWAN Card; Removing the Power Connector Port

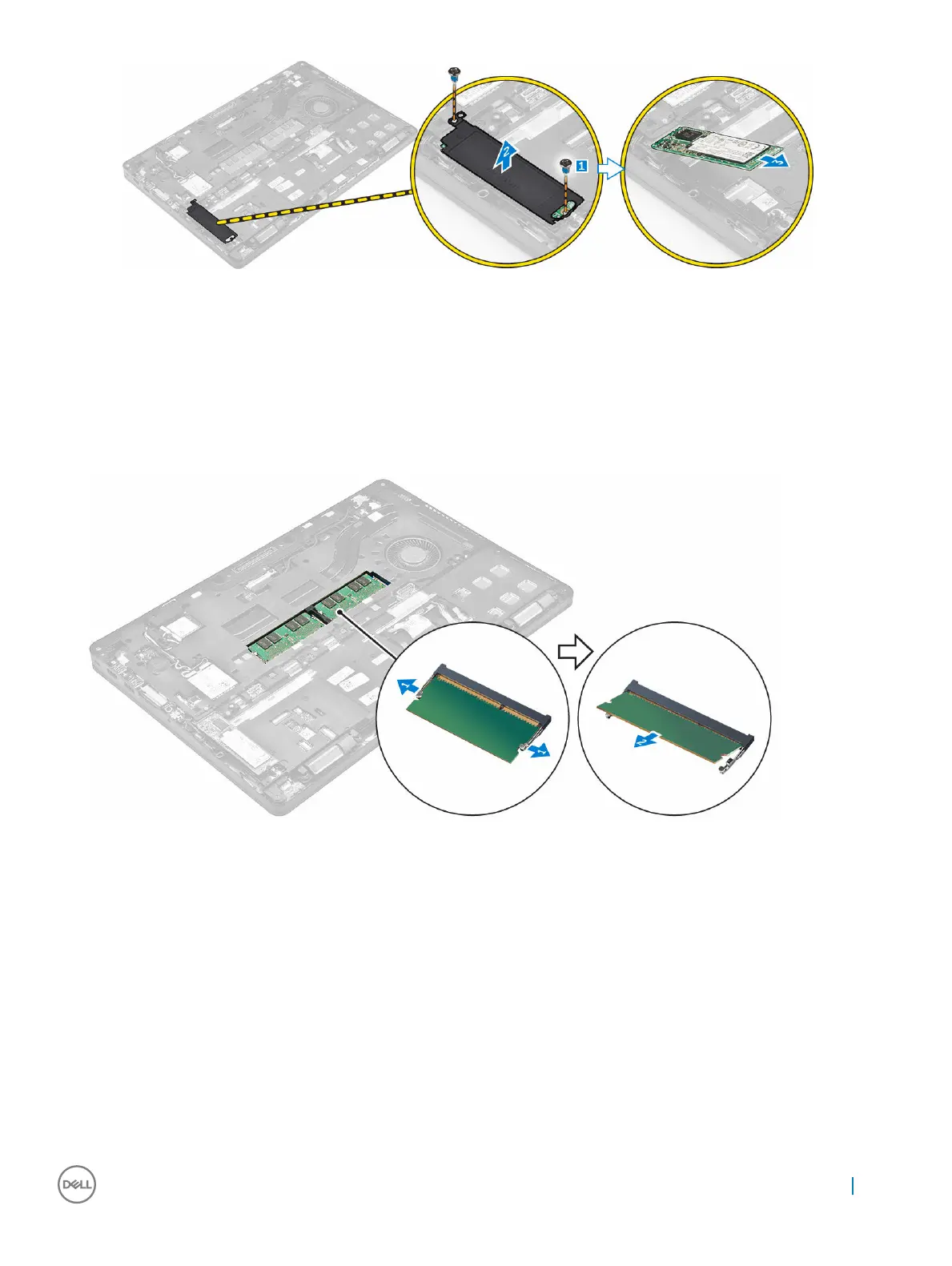

Removing the memory module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
3 Pull the clips securing the memory module until the memory module pops up [1].
4 Remove the memory module from the system board [2].
Installing the memory module
1 Insert the memory module into the memory module socket until the clips secure the memory module.
2 Install the:
a battery
b base cover
3 Follow the procedures in After working inside your computer.
Removing the WLAN card
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
Removing and installing components
15
