Installing the speakers

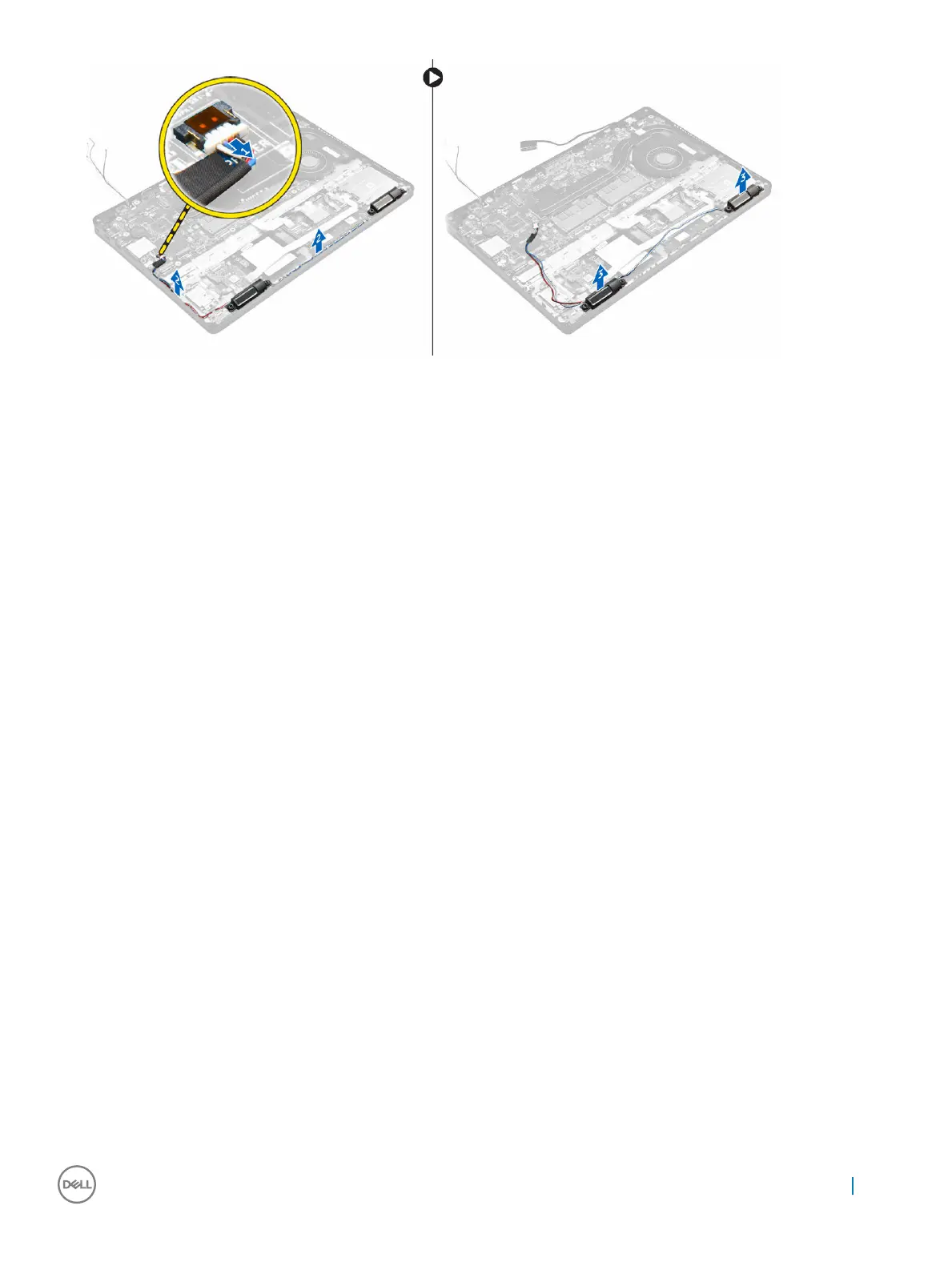

1 Place the speakers into the slots on the computer.
2 Route the speaker cable through the retention clips through the routing channel.
3 Connect the speaker cable to the connector on the system board.
4 Install the:
a dock frame
b WLAN
c WWAN
d hard drive assembly or M.2 SSD or PCIe SSD
e battery
f base cover
5 Follow the procedure in After working inside your computer.
Removing the system board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c memory module
d hard drive assembly or M.2 SSD or PCIe SSD
e WLAN card
f WWAN card
g keyboard
h dock frame
i power connector port
3 Disconnect the speaker cables [1], touch pad and system board cables [2, 3] from the system board.
Removing and installing components
