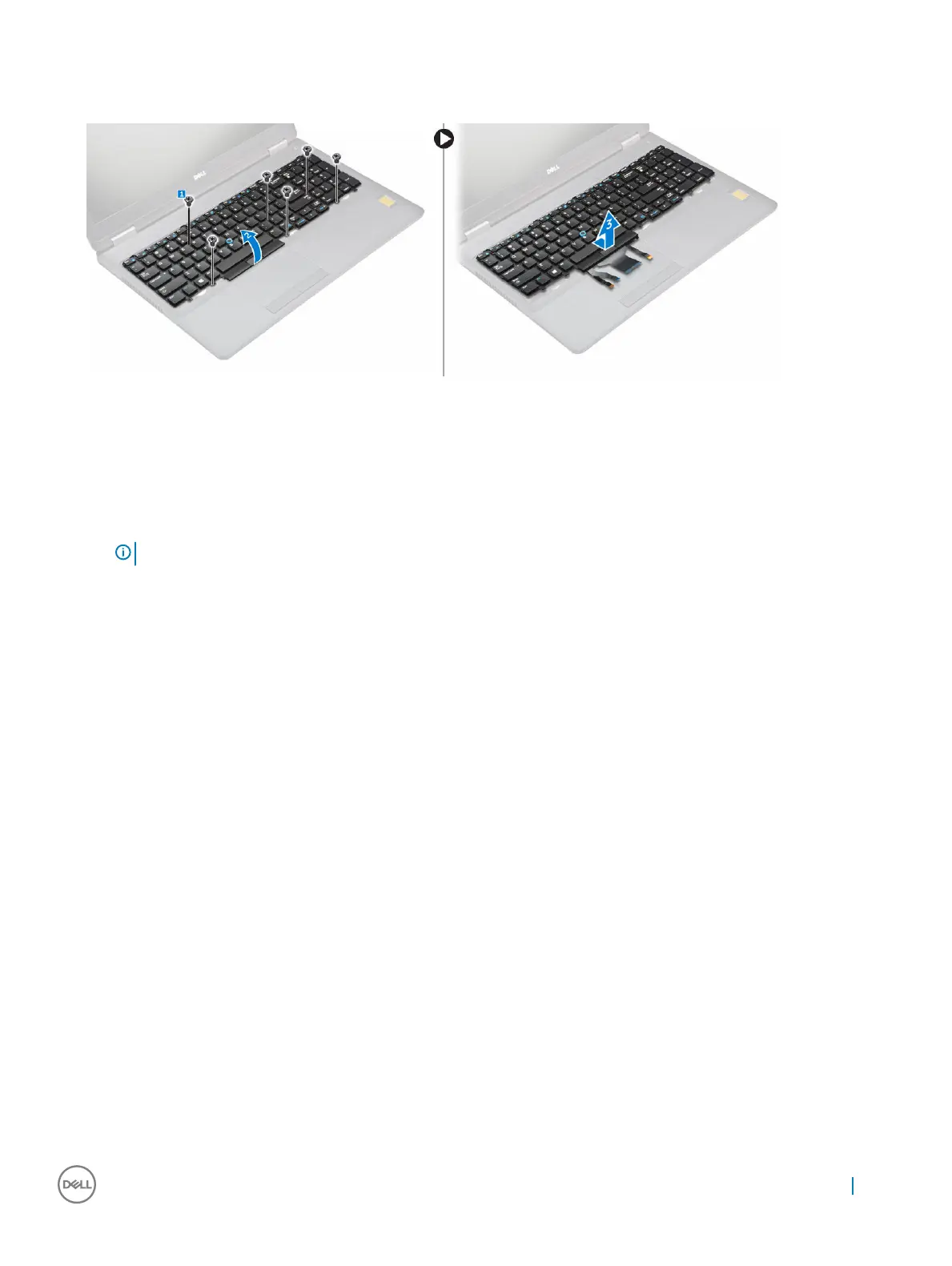

4 To remove the keyboard:
a Remove the screws that secure the keyboard to the computer [1].
b Lift the keyboard and slide it to remove it from computer [2, 3].
Installing the keyboard
1 Align the keyboard with the screw holders on the computer.
2 Tighten the screws to secure the keyboard to the computer.
3 Align the keyboard trim with the tabs on the computer and press it until it clicks into place
4 Connect the keyboard cables to the connectors on the system board.
NOTE
: If you have removed the dock frame, then install the dock frame and then connect the keyboard cables.
5 Install the:
a battery
b base cover
6 Follow the procedure in After working inside your system.
Removing the display assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c WLAN
d WWAN
3 To remove the display hinge brackets:
a Remove the screw that secures the display hinge bracket to the computer [1].
b Remove the display hinge bracket from the computer [2].
