Installing the camera

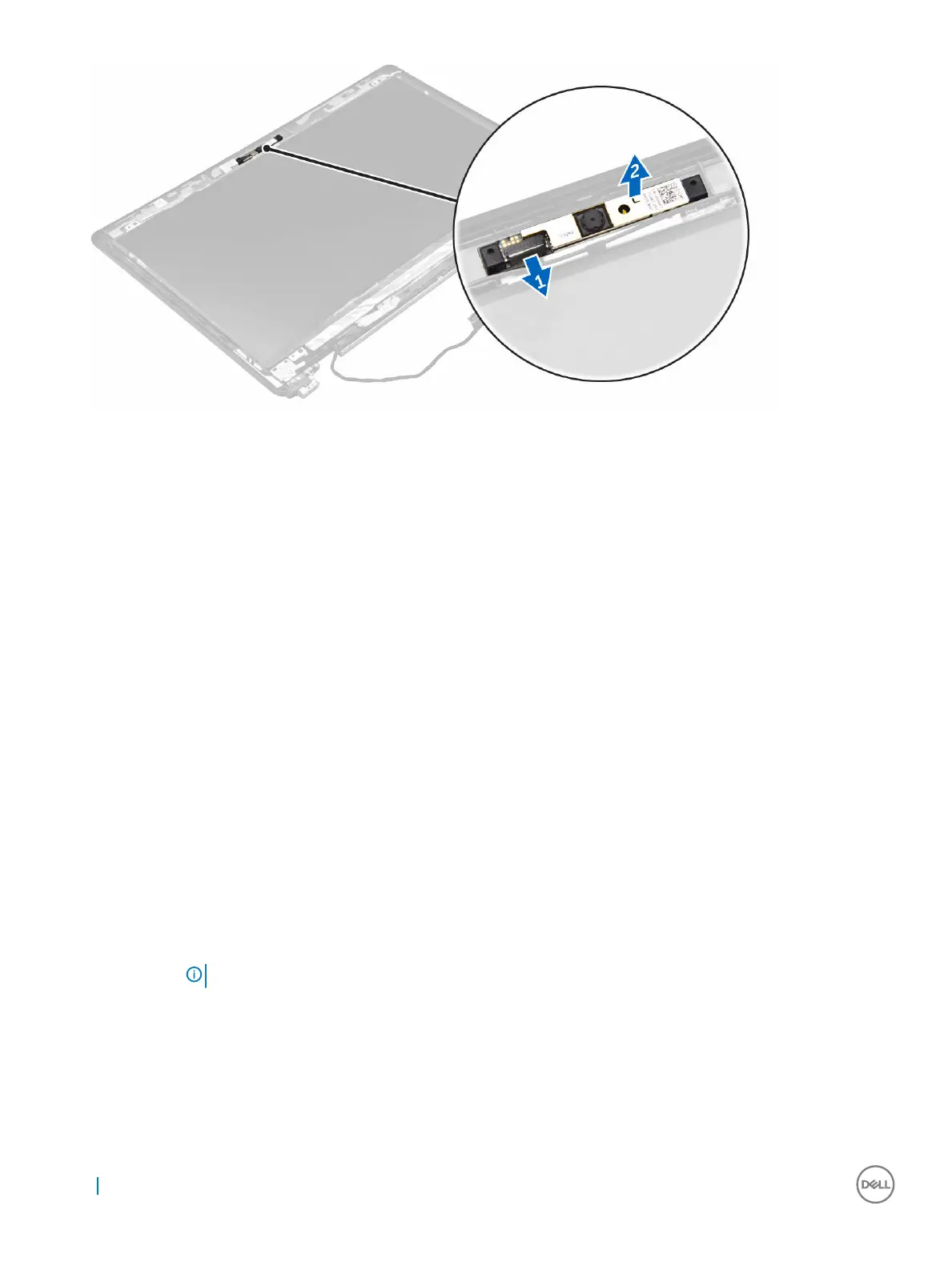

1 Place the camera on the display assembly.
2 Connect the camera cable to the connector on the display assembly
3 Install the:
a display bezel
b display assembly
c WWAN
d WLAN
e battery
f base cover
4 Follow the procedure in After working inside your system.
Removing the dock frame
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c hard drive assembly or M.2 SSD or PCIe SSD
d WLAN card
e WWAN card
3 To remove the dock frame connectors:
a Remove the screws that secure the dock frame to the computer [1].
b Remove the screw and lift the SSD plate from the computer [2, 3].
NOTE
: Step 3b is required only if the PCIe SSD card is removed.
c Disconnect the keyboard cables [4, 5].
