Installing the display panel

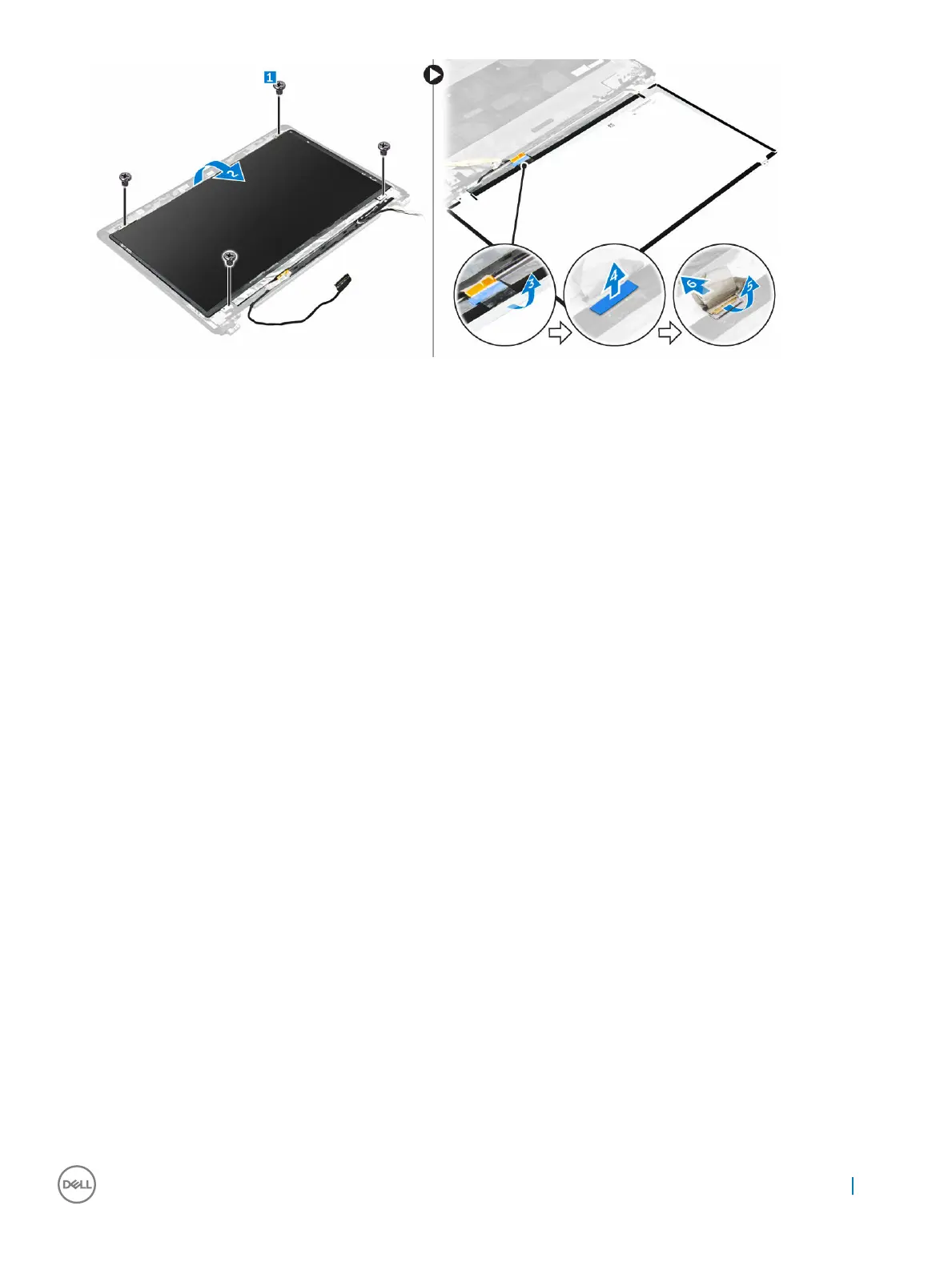

1 Connect the eDP cable to the connector and fix the adhesive tape.
2 Align the display panel with the screw holders on the display assembly.
3 Tighten the screws to secure the display panel to the display assembly.
4 Install the:
a display assembly
b display bezel
c battery
d base cover
5 Follow the procedure in After working inside your system.
Removing the camera
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c WLAN card
d WWAN card
e display assembly
f display bezel
3 To remove the camera:
a Disconnect the camera cable from the connector on the display assembly [1].
b Lift the camera away from the display assembly [2].
