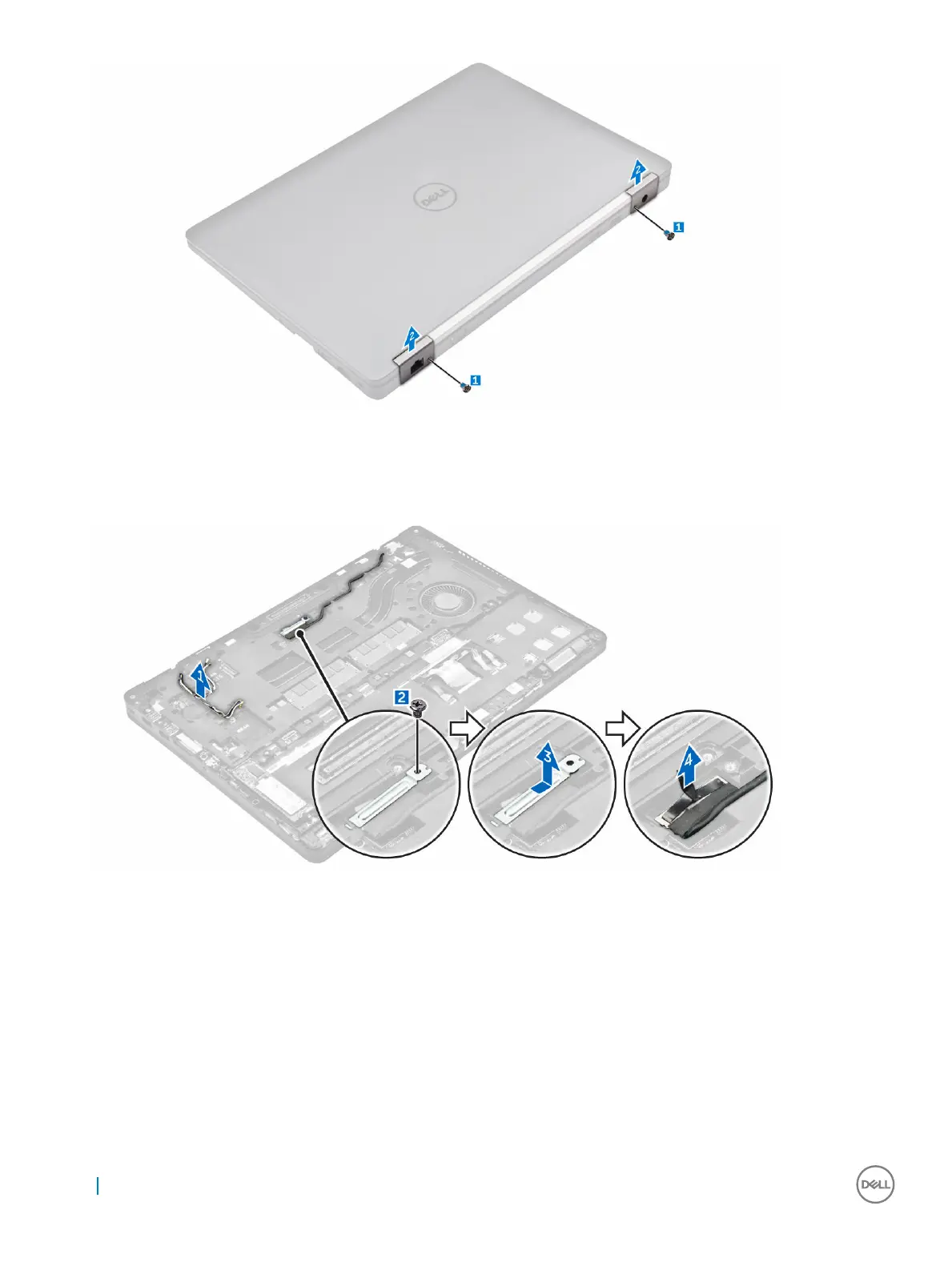

4 To disconnect display cable:
a Unroute the WLAN and WWAN cables from the dock frame [1].
b Remove the screw that secures the eDP cable bracket to the computer [2].
c Remove the eDP cable bracket to access the display cable [3].
d Disconnect the eDP cable from the system board [4].
5 To disconnect the display assembly:
a Unroute the display cable from the dock frame [1].
b Remove the screws that secure the display assembly [2]
c Release the antenna cables and display cable from the routing channel [3].
