Installing the power connector port

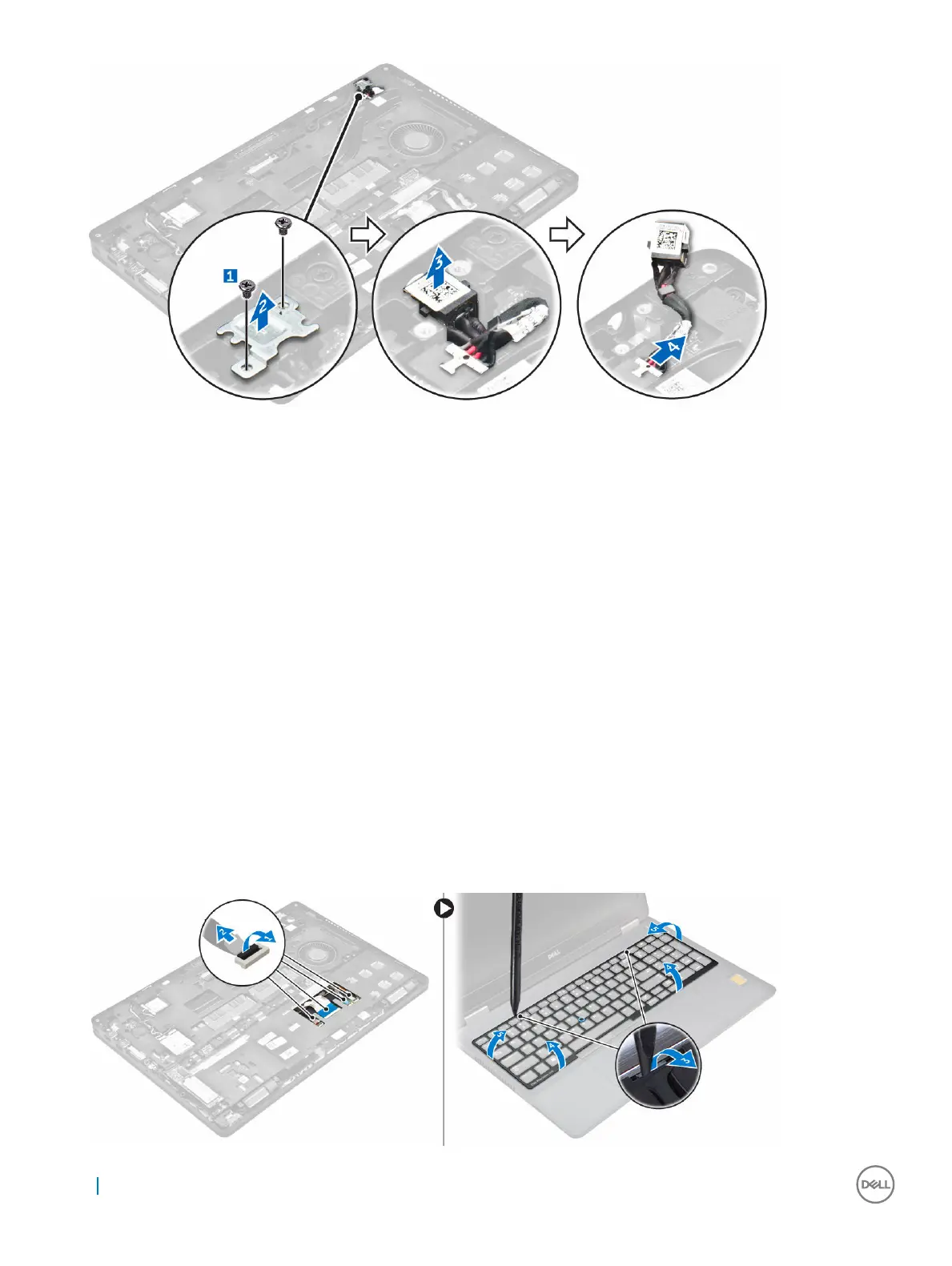

1 Insert the power connector port into the slot on the computer.
2 Place the metal bracket on the power connector port.
3 Tighten the screw to secure the power connector port to the computer.
4 Route the power connector port cable through the routing channels.
5 Connect the power connector port cable to the connector on the system board.
6 Install the:
a battery
b base cover
7 Follow the procedure in After working inside your computer.
Removing the keyboard
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
3 To remove the keyboard trim:
a Disconnect the keyboard cables from the connectors on the system board [1, 2].
b Using a plastic scribe, lift the keyboard trim from the edges to release it from the keyboard [3, 4, 5].
