Dell PowerEdge M620 - Page 157

Installing Blade Components 157

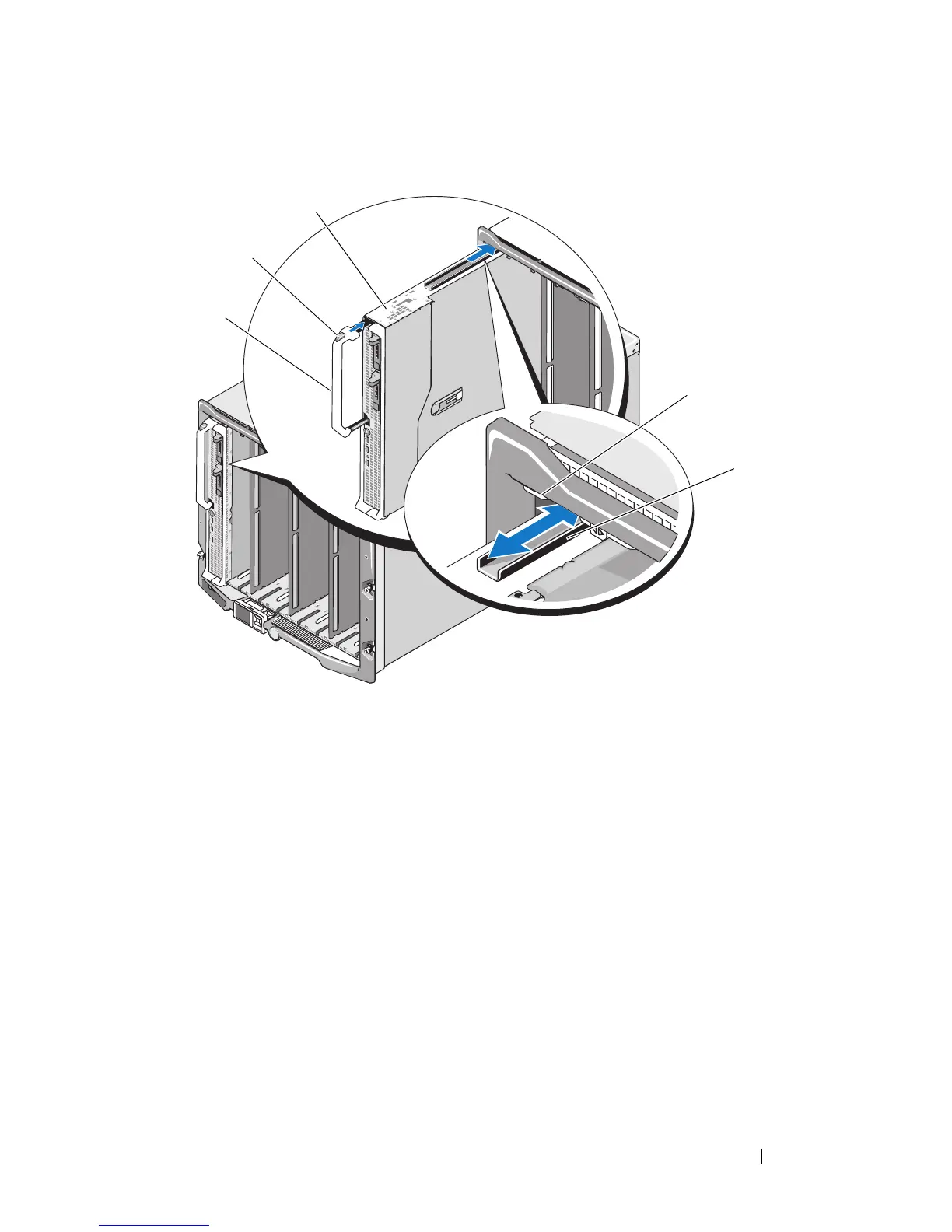

Figure 3-2. Removing and Installing a Full-Height Blade
1 blade handle 2 release button
3 blade 4 guide rail on M1000e enclosure
5 guide rail on blade
2
3
4
1
5
