352 System Board Information
PowerEdge M610x Midplane Interface Card

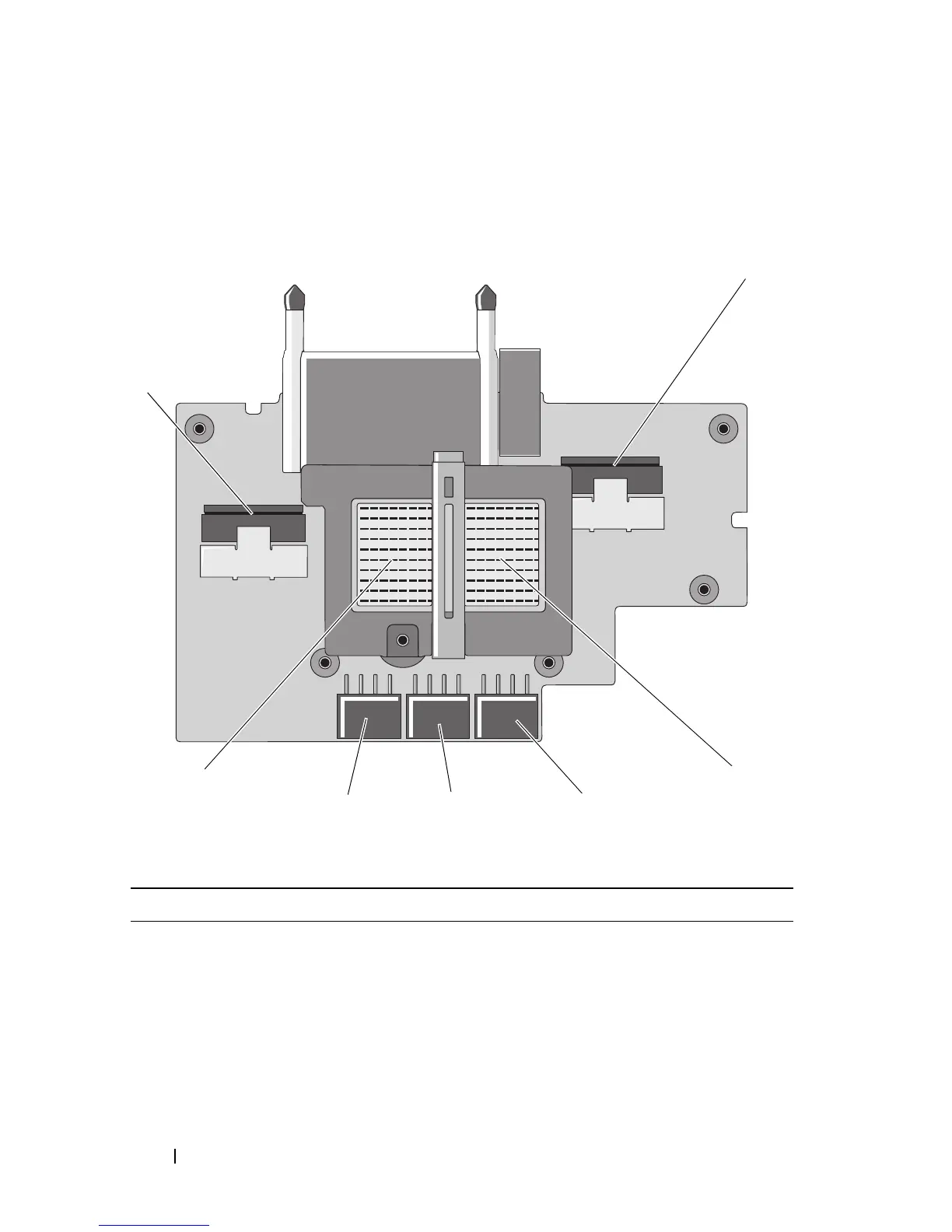

Figure 7-9. PowerEdge M610x Midplane Interface Card Connectors
Table 7-17. PowerEdge M610x Midplane Interface Card Connectors
Connector Description
1 Data 4 Data cable connector 4
2 MEZZ2_FAB_B1 Mezzanine card connector - Fabric B
3 PWR_CN3 Expansion card riser power connector
4 PCIe_PWR_CN5 PCIe card power connector
5 PCIe_PWR_CN4 PCIe card power connector
1
2
4
6
7
3
5
