Dell PowerEdge M620 - Poweredge M600 System Board

System Board Information 357
PowerEdge M600 System Board

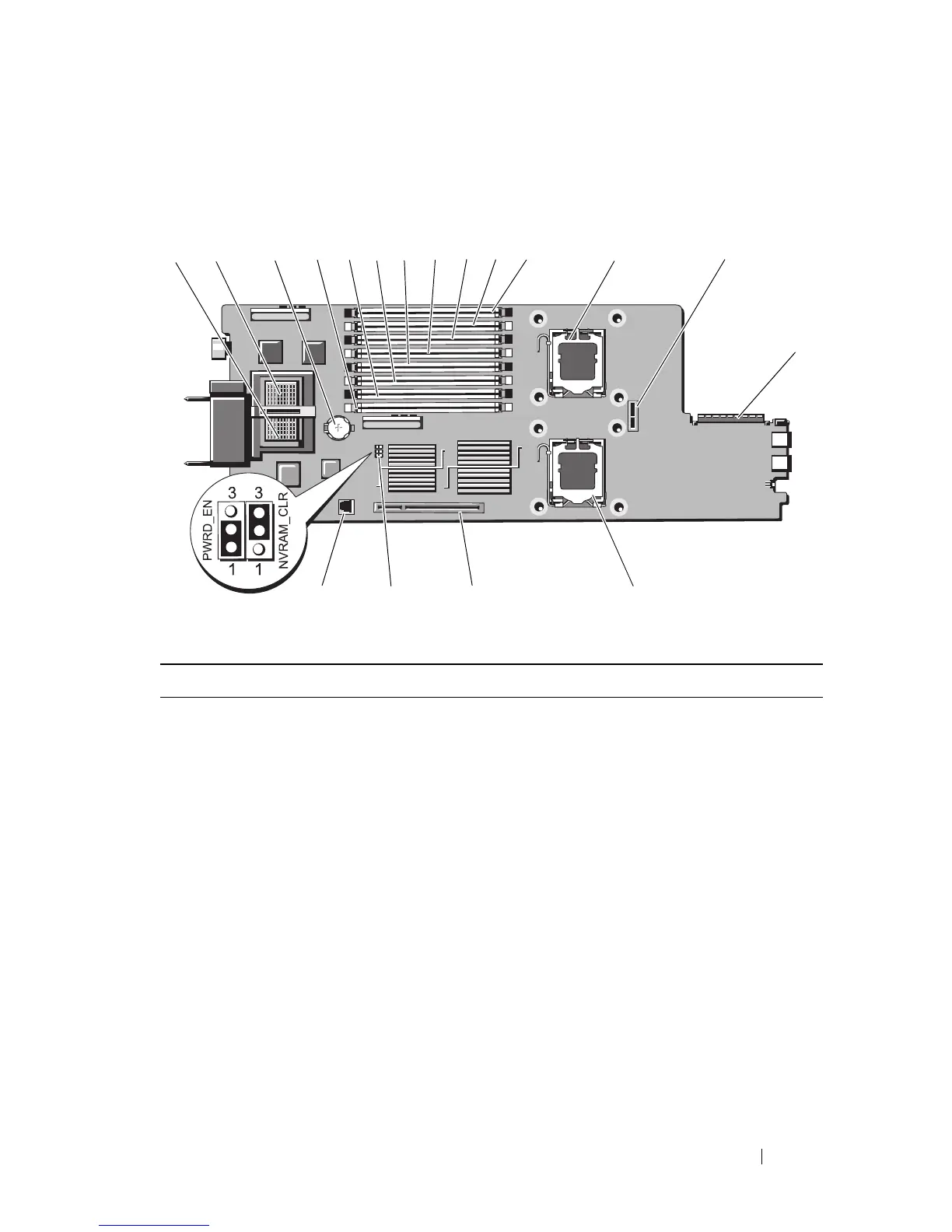

Figure 7-13. PowerEdge M600 System Board Connectors
Table 7-19. PowerEdge M600 System Board Connectors
Connector Description
1 - Mezzanine card connector - Fabric C
2 - Mezzanine card connector - Fabric B
3 BATTERY Connector for the 3.0 V coin battery
4 1 Memory module connector, slot 1
5 5 Memory module connector, slot 5
6 2 Memory module connector, slot 2
7 6 Memory module connector, slot 6
8 3 Memory module connector, slot 3
9 7 Memory module connector, slot 7
10 4 Memory module connector, slot 4
11 8 Memory module connector, slot 8
12 CPU1 Processor 1 socket
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
3
