Installing Blade Components 163

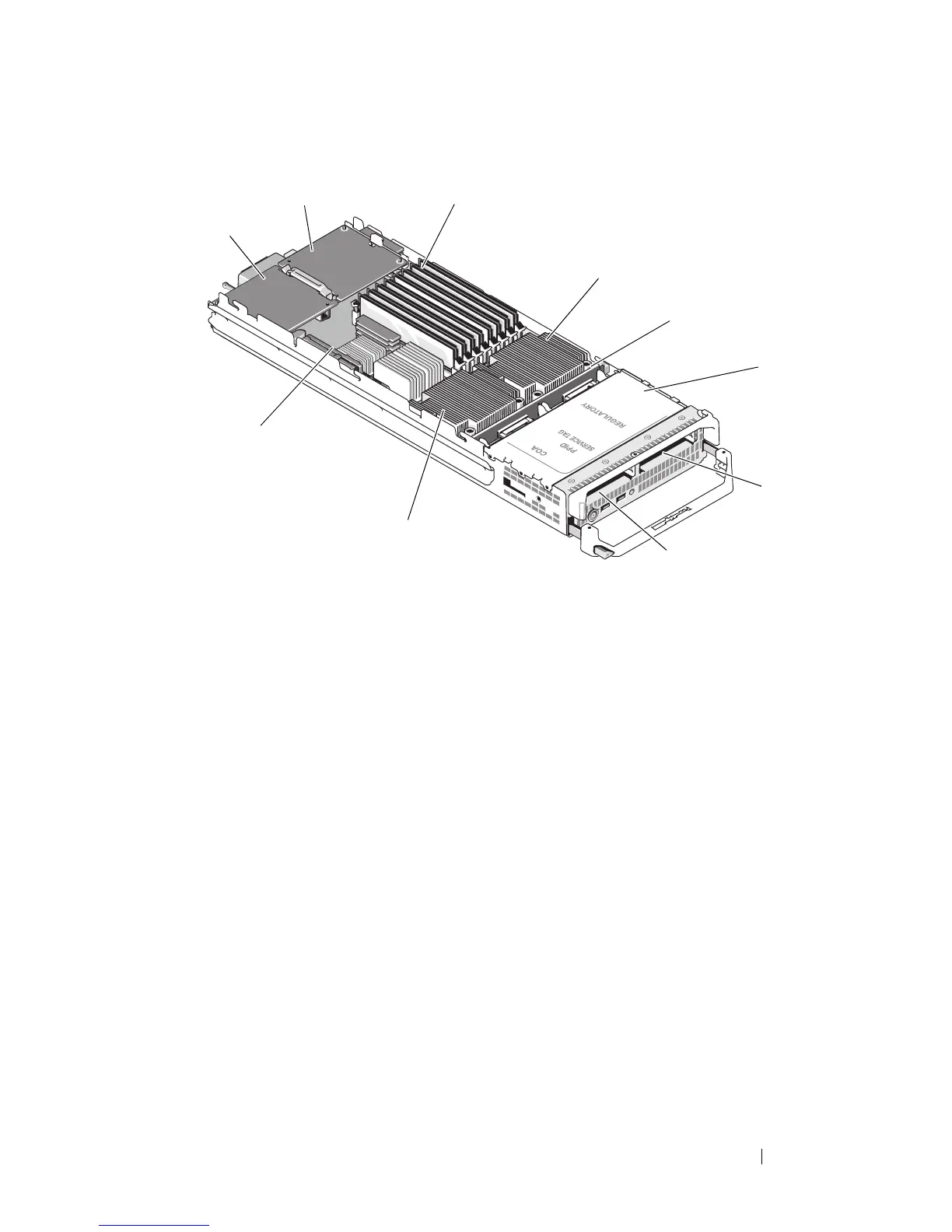

Figure 3-5. Inside a Half-Height Blade (PowerEdge M600)
1 optional Fabric C mezzanine card 2 optional Fabric B mezzanine card
3 memory modules 4 processor CPU1 and heat sink
5 hard-drive backplane 6 storage controller card (under
drive bays)
7 hard drive 1 8 hard drive 0
9 processor CPU2 and heat sink 10 video riser card
2
3
5
1
7
8
9
10
6
4
