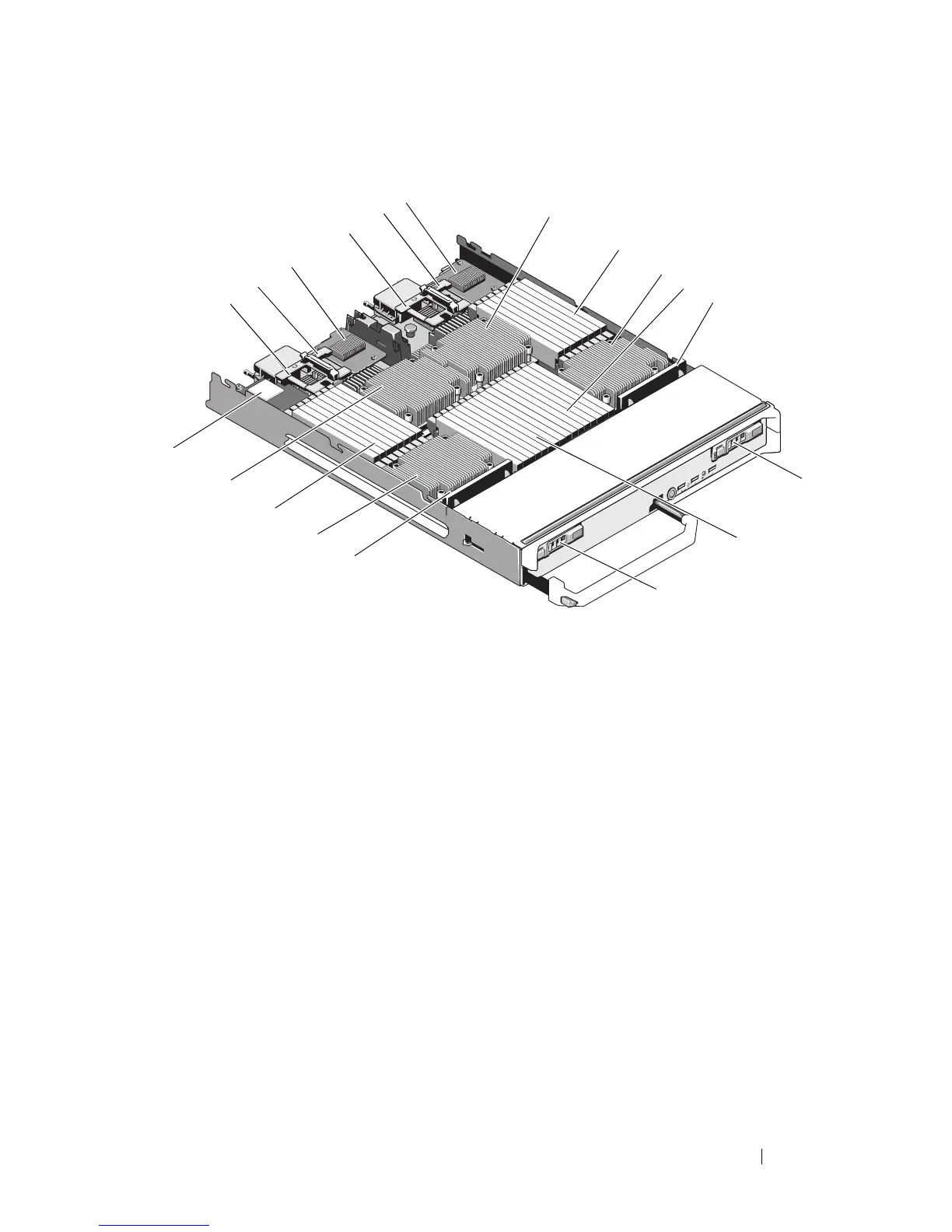

Figure 3-7. Inside a Full-Height Blade (PowerEdge M915)
1 optional mezzanine card
Mezz1_Fab_C
2 optional mezzanine card -
Mezz2_Fab_B
3 LOM Riser A 4 optional mezzanine card
Mezz3_Fab_C
5 optional mezzanine card -
Mezz4_Fab_B
6LOM Riser B
7 processor CPU2 and heat sink 8 memory modules
(for CPU 2)
9 processor CPU4 and heat sink 10 memory modules
(for CPU 4)
11 hard-drive backplane 2 12 hard-drive 1
13 memory modules
(for CPU 3)
14 hard-drive 0
15 hard-drive backplane 1 16 processor CPU3 and heat sink
17 memory modules
(for CPU 1)
18 processor CPU1 and heat sink
19 iDRAC6 enterprise card
