220 Installing Blade Components

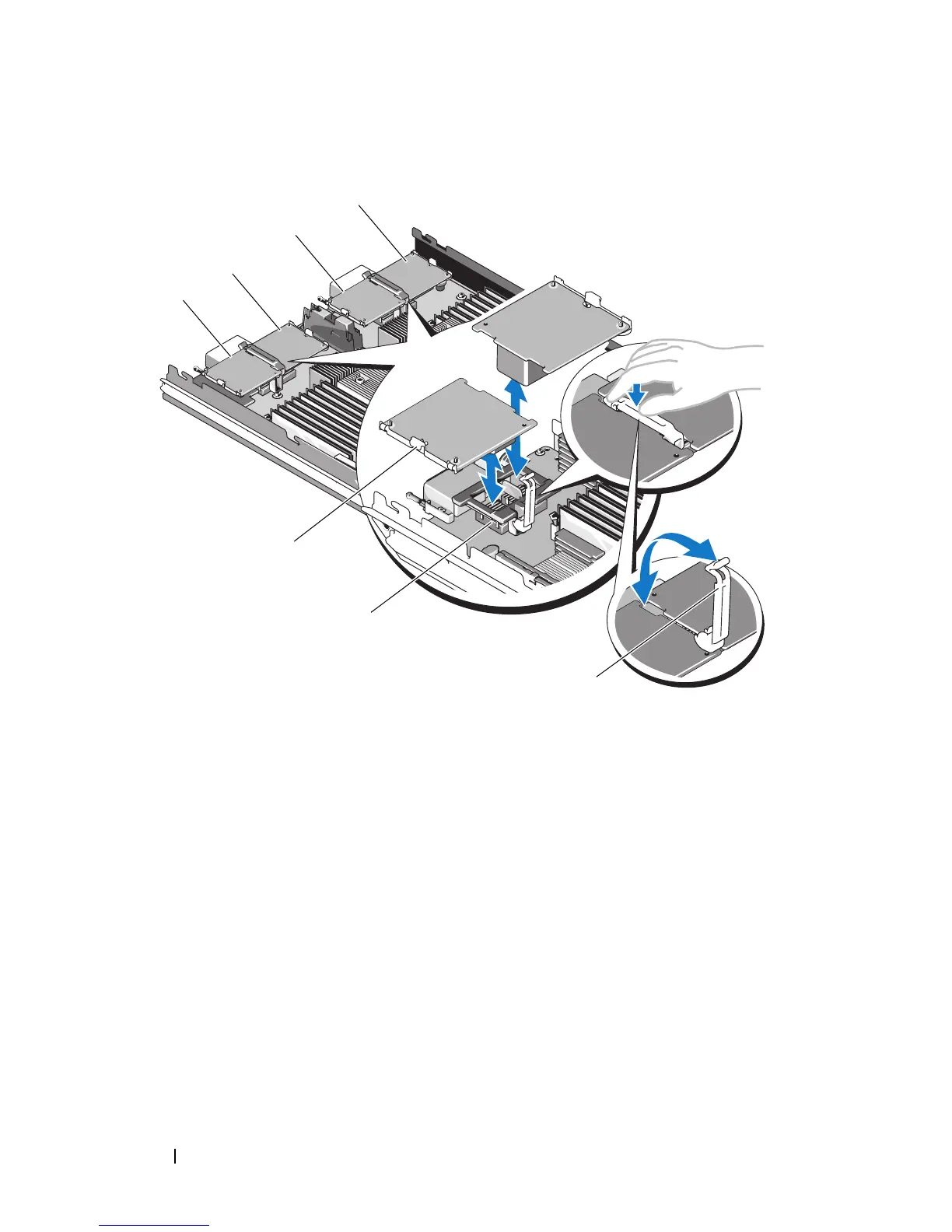

Figure 3-24. Installing and Removing a Mezzanine Card - Full-Height Blades
1 optional Fabric C mezzanine card 1 2 optional Fabric B mezzanine card 2
3 optional Fabric C mezzanine card 3 4 optional Fabric B mezzanine card 4
5 retention latch 6 mezzanine card connector
7 mezzanine card
5
1
2
3
4
6
7
