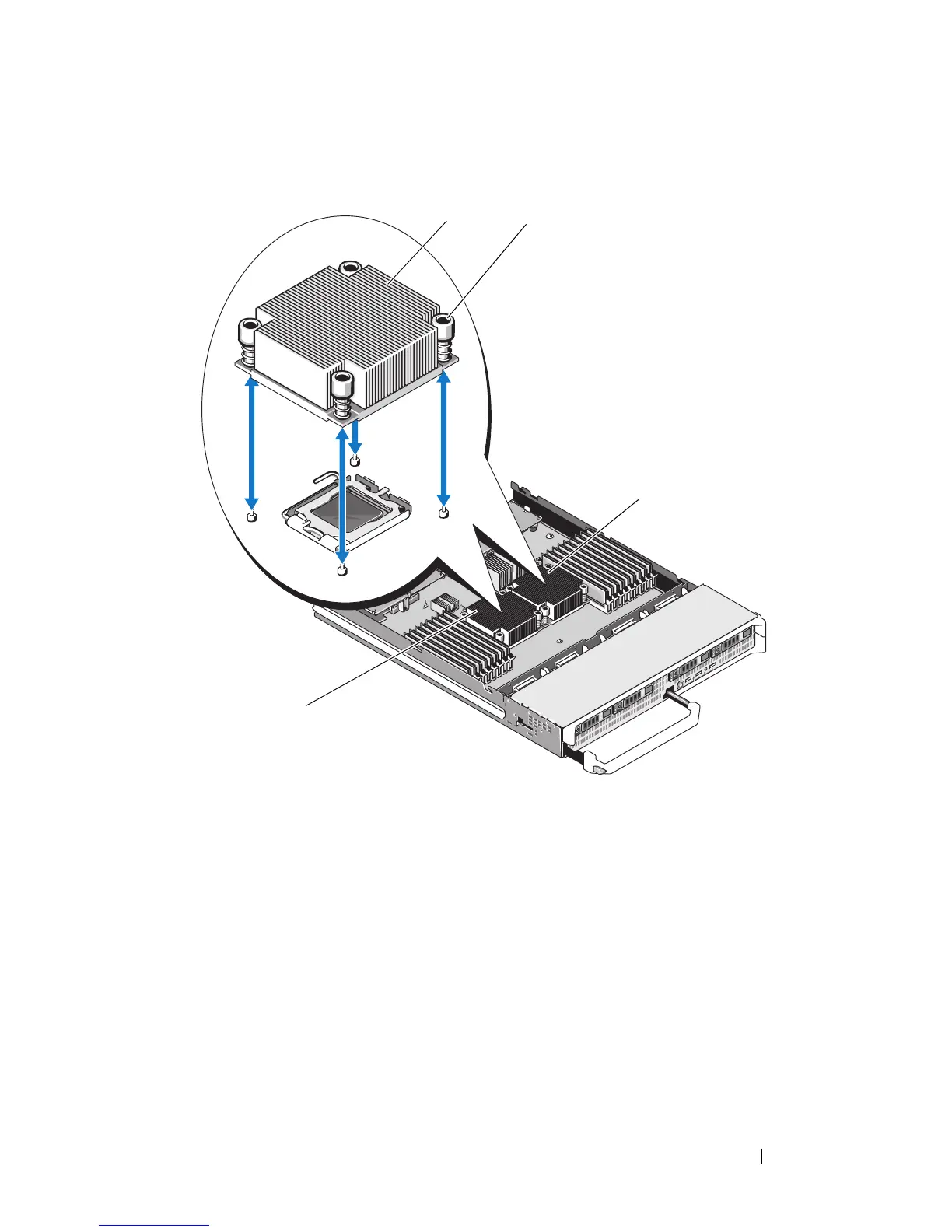

Figure 3-44. Installing and Removing a Heat Sink (PowerEdge M710)
1 heat sink
NOTE: You must install the heat
sink in the orientation shown here.
2 screws (4)
3 socket CPU2 4 socket CPU1
2
1
3
4
