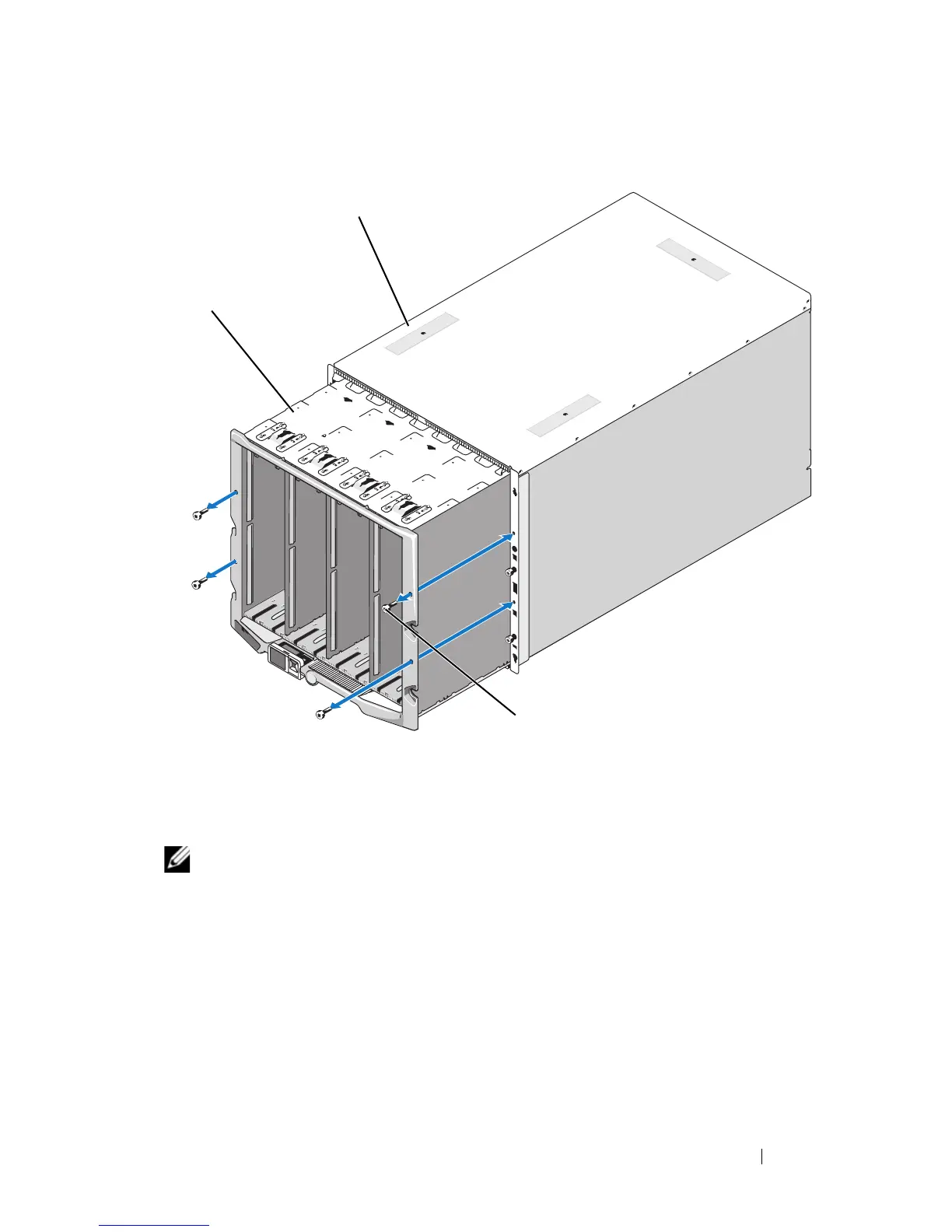

Figure 4-8. Removing and Installing the Front Module Cage Assembly
NOTE: The empty cage assembly weighs 21 kg (47 lbs). Obtain assistance when
removing the cage assembly from the enclosure.
9
Slide the cage out from the enclosure. See Figure 4-8.
10
Disconnect the control-panel cable from the midplane by pressing the
small latch at each end of the connector.
11
Remove the four T-15 Torx screws securing the midplane to the back of
the front cage assembly, and remove the midplane. See Figure 4-9.
1 front module cage assembly 2 enclosure
3 screws (4)
