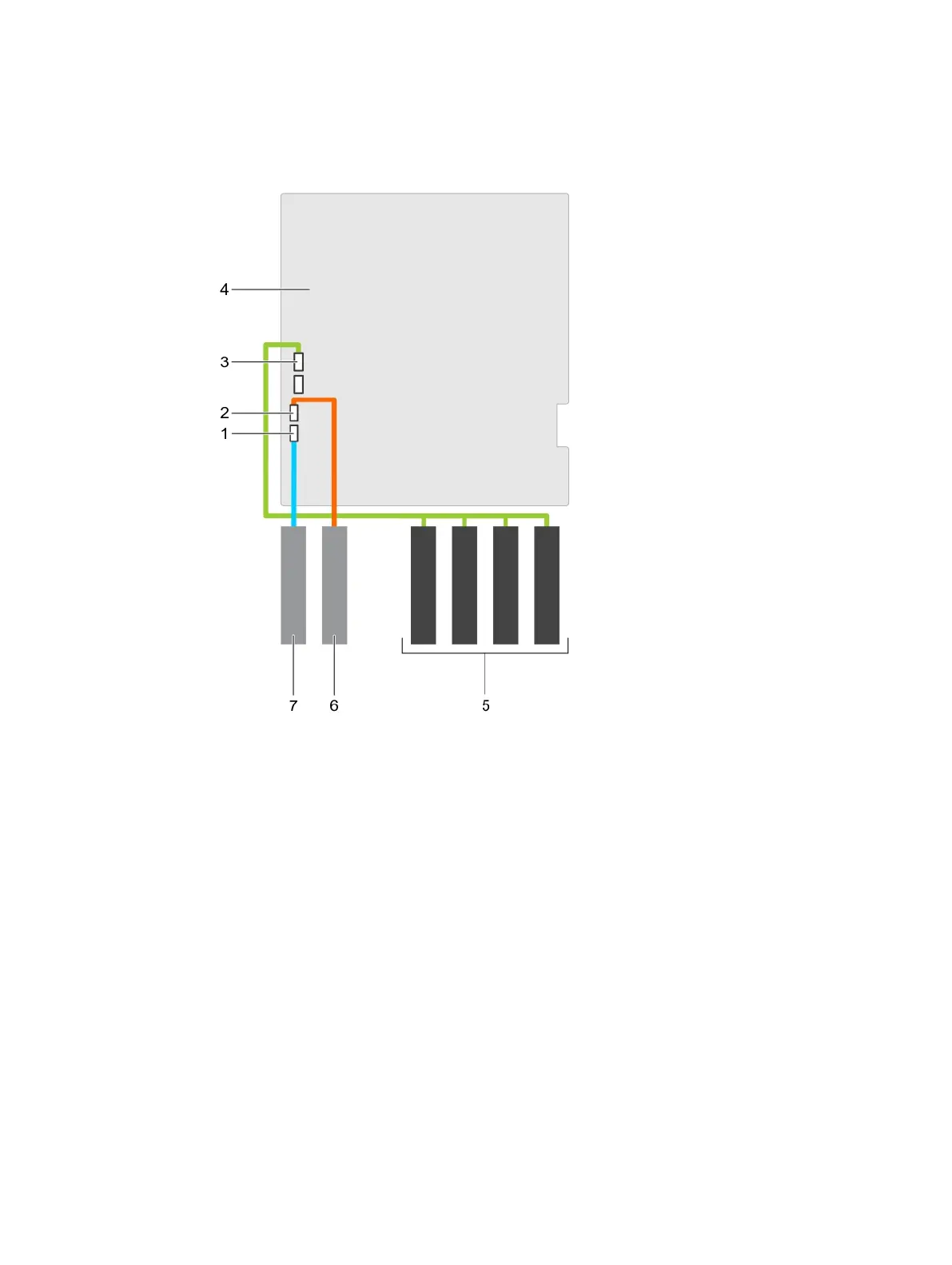

Figure 42. Cabling—Cabled hard-drives
1. SATA optical drive connector on system
board
2. SATA tape drive connector on system
board
3. SATA A connector on system board 4. system board
5. hard drives 6. tape drive
7. optical drive
