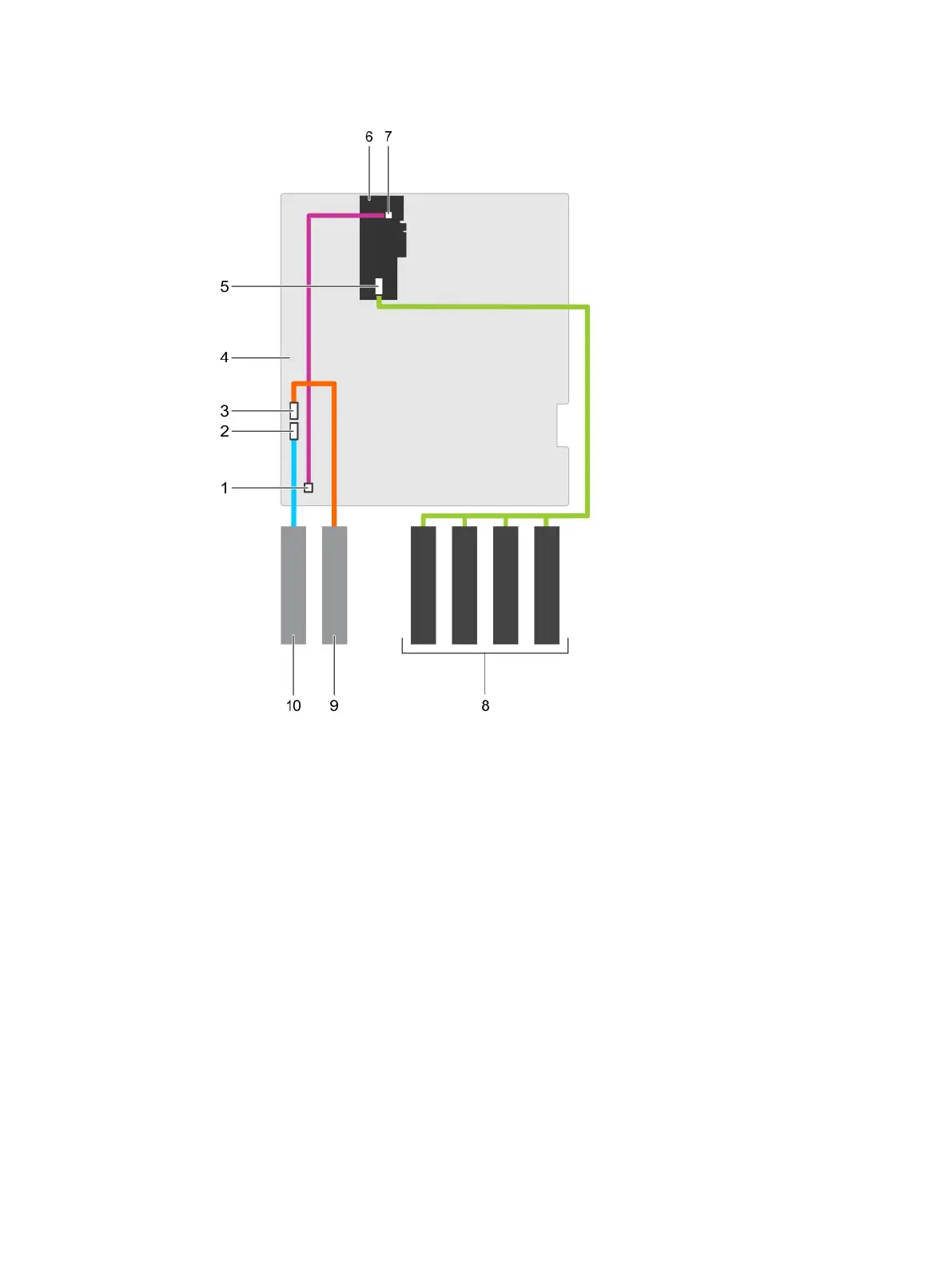

Figure 43. Cabling—Cabled hard-drives with a PERC card
1. front-panel HDD LED controller
connector on the system board
2. SATA optical drive connector on system
board
3. SATA tape drive connector on system
board
4. system board
5. SAS connector on PERC card 6. PERC card
7. front-panel HDD LED controller
connector on the PERC card
8. hard drives
9. tape drive 10. optical drive
Next steps
1. Install the internal hard-drive bay into the chassis.
2. If disconnected, reconnect the power and data cable(s) to the remaining hard drive(s) in the internal
hard-drive bay.
3. Follow the procedure listed in the After working inside your system section.
