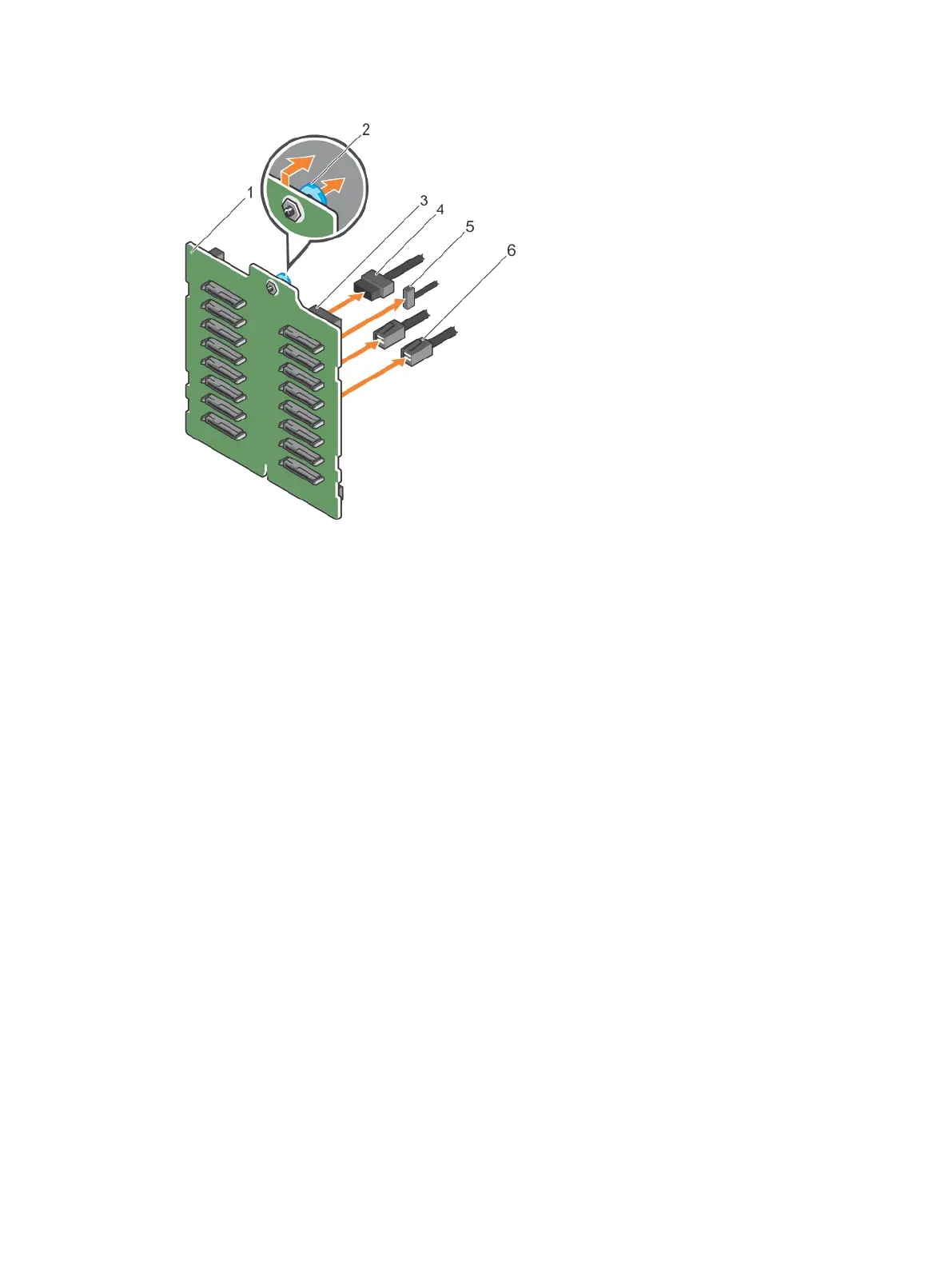

Figure 45. Removing an x16 hard drive backplane
1. x16 hard drive backplane 2. release pin
3. power connector 4. power cable
5. signal cable 6. SAS cable
