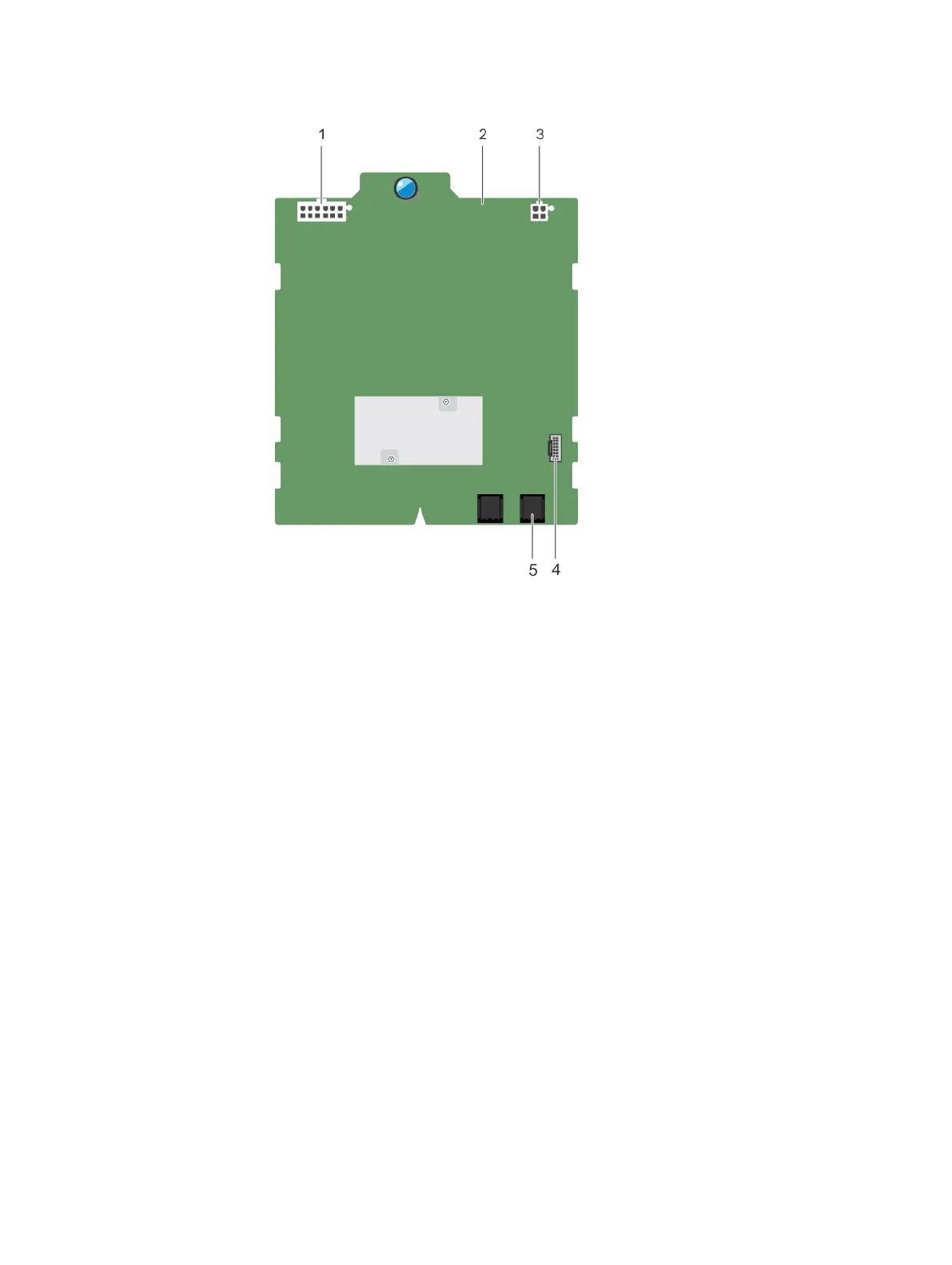

Figure 46. Connectors on an x16 hard drive backplane
1. backplane power connector 2. x16 backplane
3. power connector for the optical and tape
drives
4. signal connector
5. SAS A connector
