Removing the internal USB card
Pr
erequisites
CAUTION: T
o avoid interference with other components in the server, the maximum permissible dimensions of
the USB memory key are 15.9 mm wide x 57.15 mm long x 7.9 mm high.
1. Follow the safety guidelines listed in the S
afety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Remove the expansion card risers.
Steps
1. Holding the blue tag, lift the internal USB card to disconnect from the connector on the system board.
2. Remove the USB memory key from the internal USB card.

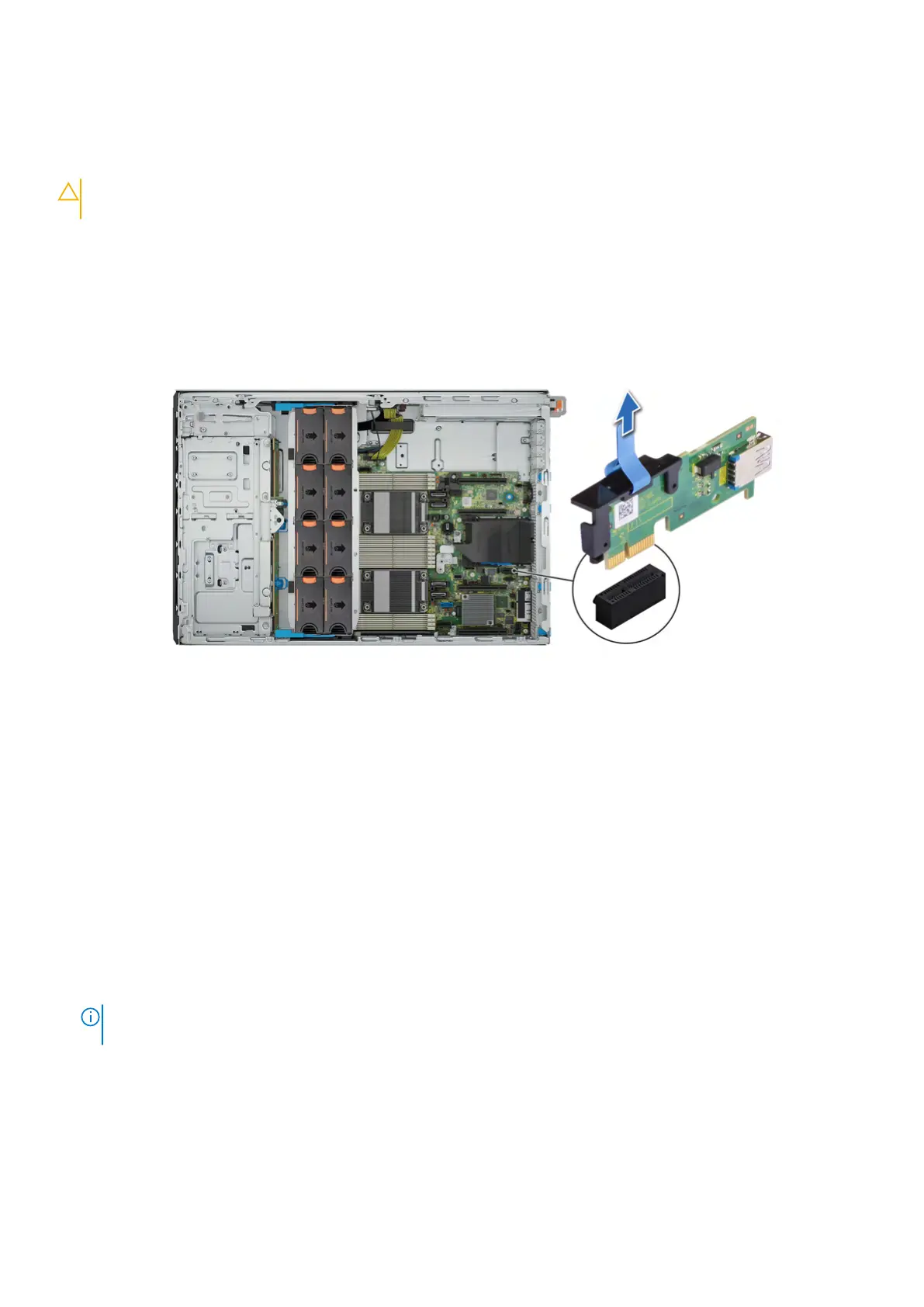

Figure 148. Removing the internal USB card
Next steps
1. Replace the internal USB card..
Installing the internal USB card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
3. Remove the expansion card risers.
Steps
1. Connect the USB key to the internal USB card.
NOTE: For information about the exact location of USB on system board, see S
ystem board jumpers and connectors
section.
2. Align the internal USB card with the connector on the system board and press firmly until the internal USB card is seated.
