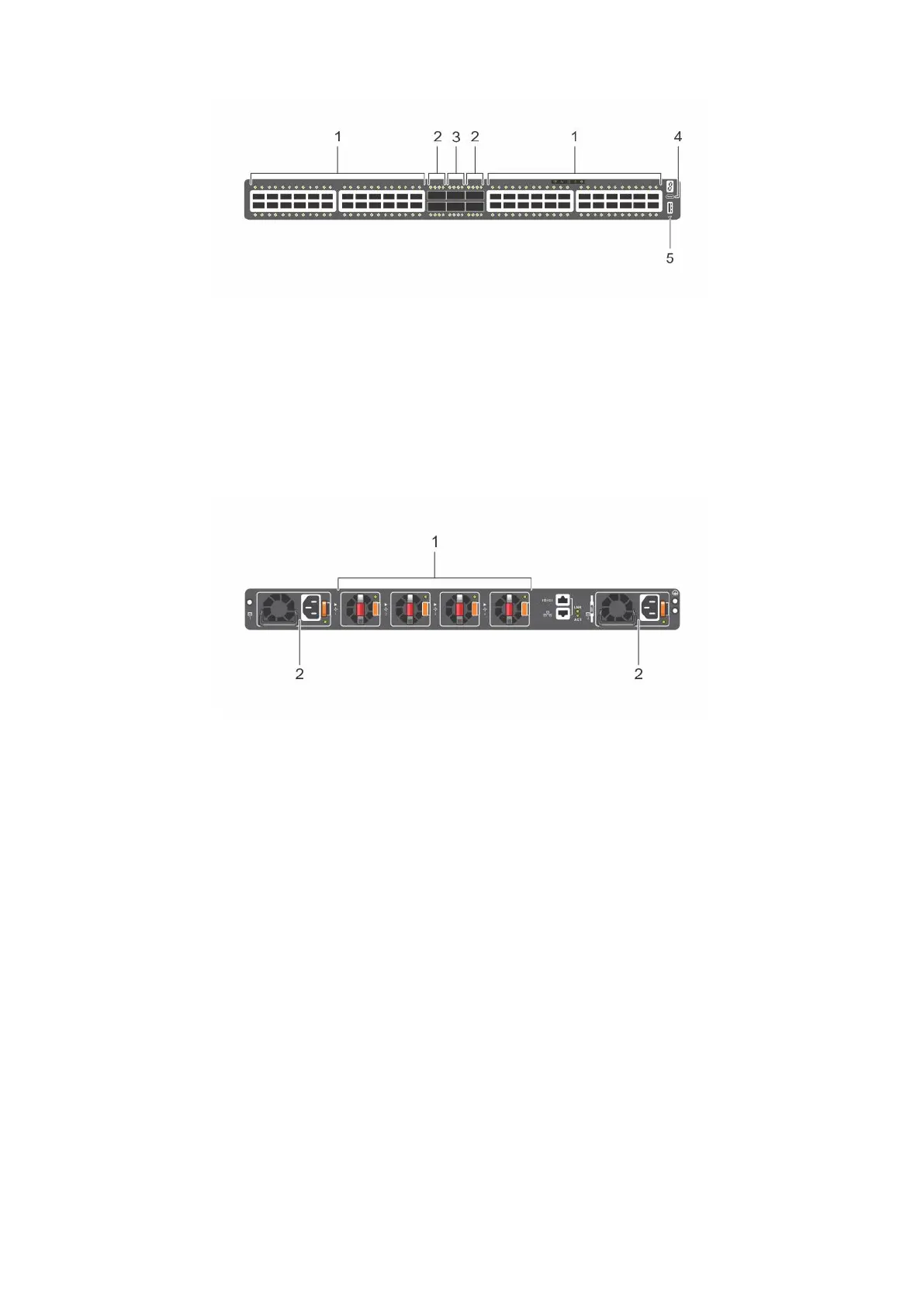

Figure 7. S4148U-ON switch I/O-side view
1. Unified Fibre channel and Ethernet SFP+ ports and
Ethernet-only SFP+ optical ports
2. Unified Fibre Channel and Ethernet QSFP28 ports
3. Ethernet QSFP+ optical ports 4. Micro USB-B console port
5. USB Type-A
The S4100-ON Series PSU-side of the switch has two hot-swappable power supplies (PSUs) with integrated fans and four
hot-swappable fan trays. The platforms include one RJ45 10/100/1000 Base-T Ethernet management port, one RJ45 console
port, and one RS-232 serial console port on the PSU side of the switch.
Figure 8. S4100-ON Series PSU-side view
1. Four hot-swappable fan units
2. Two hot-swappable PSUs with integrated fans
Features
The S4100–ON Series (S4128F-ON, S4148F-ON, S4148FE-ON, S4128T-ON, S4148T-ON, and S4148U-ON) offers the following
features:
● S4128F-ON: 28 fixed 10GbE SFP+ ports, 2 fixed 100GbE QSFP28 ports
● S4148F-ON: 48 fixed 10GbE SFP+ ports, 2 fixed 40GbE QSFP+ ports, 4 fixed 100GbE QSFP28 ports
● S4148FE-ON: 48 fixed 10GbE SFP+ ports, 2 fixed 40GbE QSFP+ ports, 4 fixed 100GbE QSFP28 ports with support for LRM
optics
● S4128T-ON: 28 fixed copper 10GBase-T RJ-45 ports SFP+ ports, two fixed 40GbE QSFP+ ports
● S4148T-ON: 48 fixed copper 10GBase-T RJ-45 ports SFP+ ports, two fixed 40GbE QSFP+ ports, four 100GbE QSFP28
ports
● S4148U-ON: 24 10G unified Fibre channel and Ethernet SFP+ ports, 24 10G Ethernet SFP+ ports, two 40G Ethernet QSFP+
ports, four 100G unified Fibre channel and Ethernet QSFP28 ports
● One MicroUSB-B serial console management port
● One RJ-45 serial console management port
● One RS-232 serial console port
● One universal serial bus (USB) Type-A port for more file storage
● One 2 Core Rangeley C2338 central processing unit (CPU), with 4GB DDR3 SDRAM and one 16 GB mSATA/M.2 SSD
module
S4100–ON Series switch
11
