Dell PowerSwitch S4128F-ON User Manual

Fans
The S4100–ON Series (S4128F-ON, S4148F-ON, S4148FE-ON, S4128T-ON, S4148T-ON, and S4148U-ON) switch comes from
the factory with two PSUs and four fan modules installed in the chassis. The fan modules and the power supplies are hot-
swappable.
In addition to the power supply modules, you can order and install fan modules separately.
NOTE: The S4100–ON Series switch supports two airflow direction options—normal and reverse. All fans and PSUs MUST
have the same airflow direction. If you mix the airflow direction, to avoid heat damage to the switch components, you must
correct the mixed airflow direction.
● Airflow is from the I/O panel to the PSU—normal.
● Airflow is from the PSU to the I/O panel—reverse.
Environmental factors can decrease the amount of time required between fan replacements. Check the environmental factors
regularly. An increase in temperature and particulate matter in the air might affect performance—for example, new equipment
installation.
CAUTION: Check the fans at six-month intervals, and replace them as necessary. Regularly monitor the speeds
of the fans to accurately determine replacement intervals.
Topics:
• Components
• Fan module installation
Components
The following are the S4100–ON Series (S4128F-ON, S4148F-ON, S4148FE-ON, S4128T-ON, S4148T-ON, and S4148U-ON) fan
components.
● S4100–ON Series Fan module
● S4100–ON Series Fan module—reverse

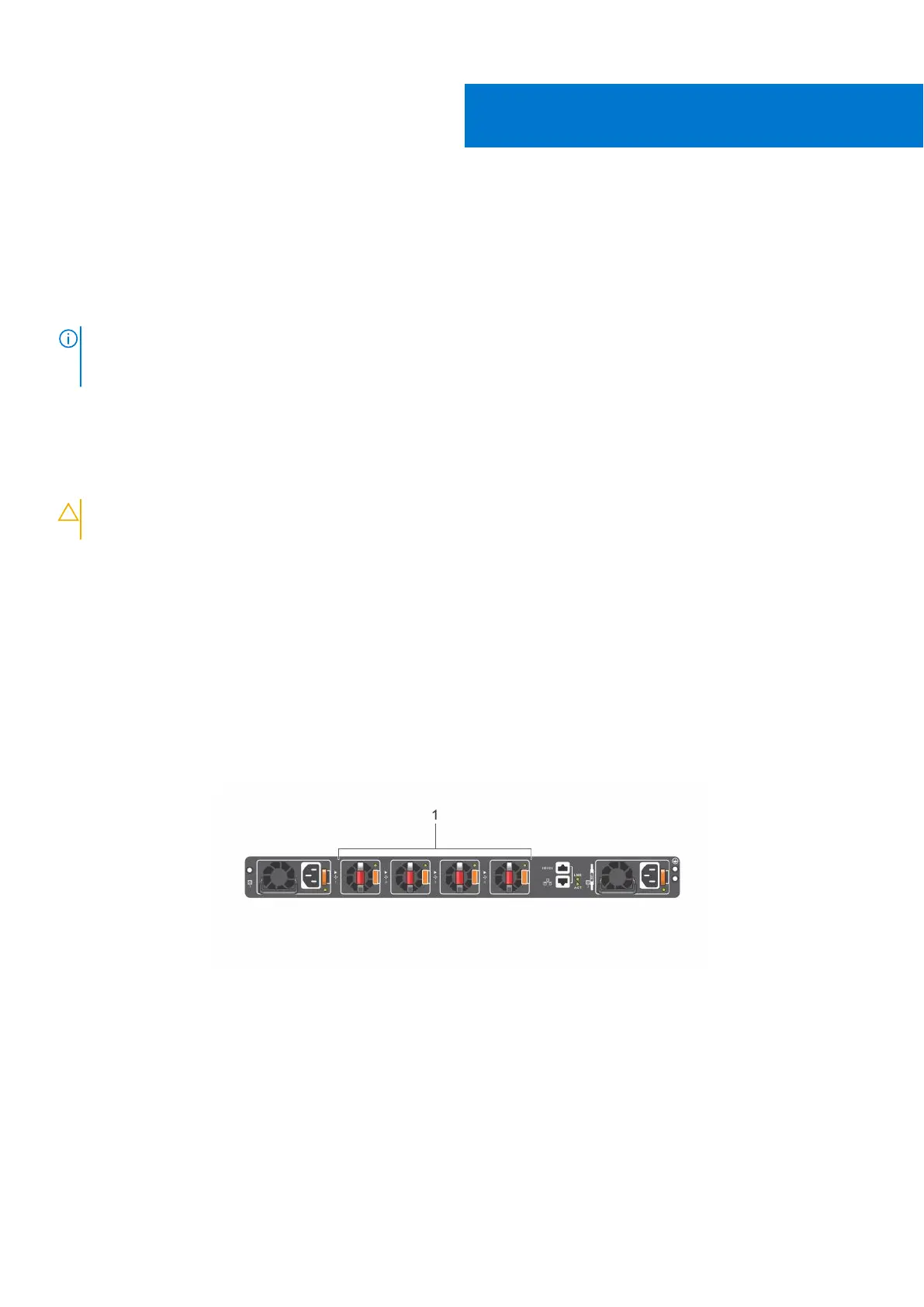

Figure 26. S4100-ON Series fan modules
1. Fan units
Fan LEDs
● Solid green—fan function is normal.
● Flashing yellow (amber)—there is a fan fault.
● Off—fan is off.
6
36 Fans

Dell PowerSwitch S4128F-ON Specifications

General

Product Type	Switch
Model	S4128F-ON
Uplink Ports	4 x 100GbE QSFP28
Power Supply	Dual, hot-swappable
Airflow	Front-to-back or back-to-front
Jumbo Frame Support	Yes, up to 9216 bytes
Latency	800ns
Management	CLI, SNMP, REST API
Dimensions (W x D x H)	43.0 cm x 4.3 cm
