Dell QMD8262-k

3–Adapter Management Applications
Windows Management Applications
94 CU0354602-00 L
To add and configure a VLAN:
1. On the Team Management page under Teams and Adapters, right-click
either a team or an unteamed adapter.
2. On the shortcut menu, click Add VLAN (see Figure 3-14).

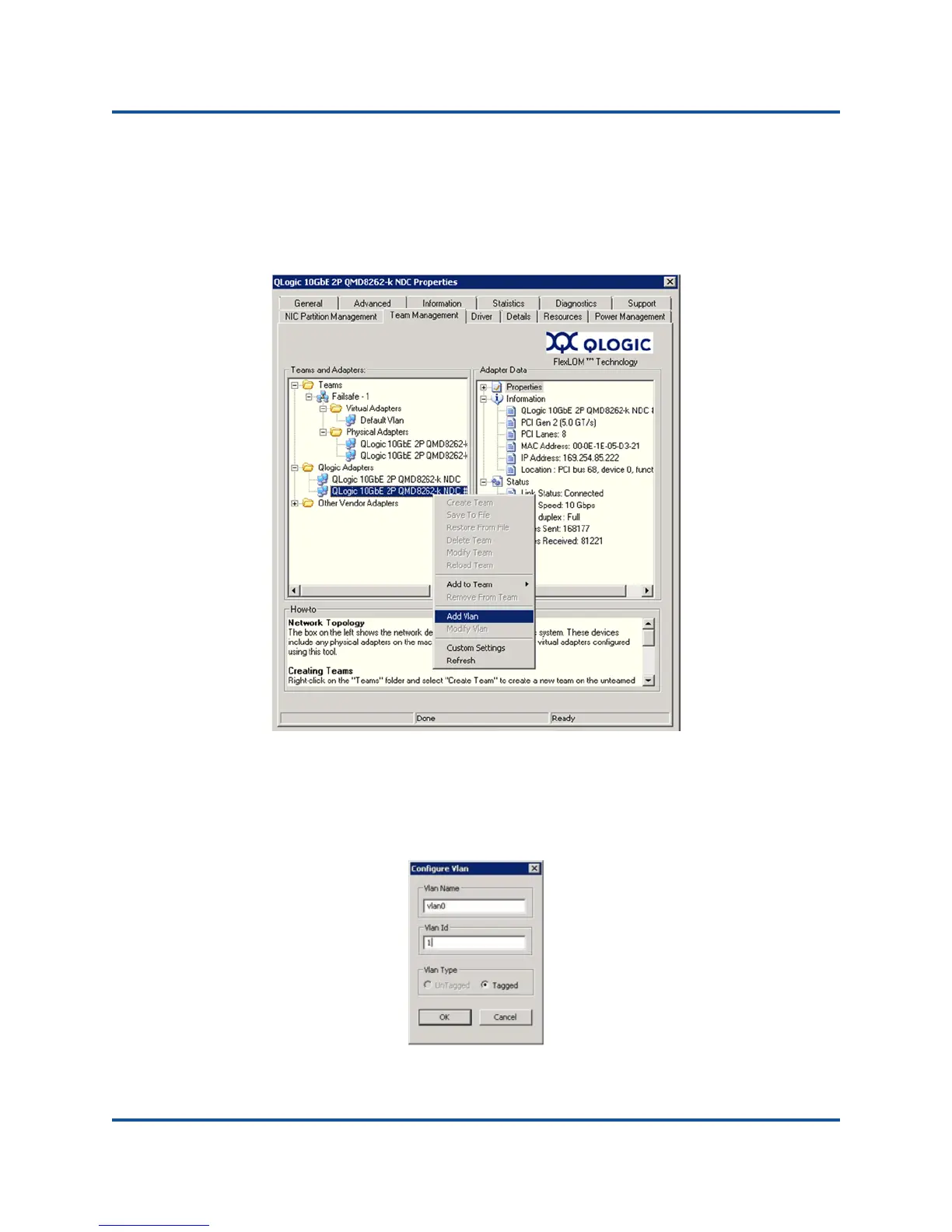

Figure 3-14. Adding a VLAN
3. On the Configure VLAN dialog box (see Figure 3-15), type values in the
VLAN Name and VLAN ID boxes, click an appropriate VLAN Type, and
then click OK.
Figure 3-15. Configuring a VLAN
