5–Boot Configuration
Dell System Setup
185 CU0354602-00 L
NIC Configuration
The NIC Configuration page (see Figure 5-5) allows the user to set the following:
Legacy Boot Protocol: Select PXE, iSCSI, or None to control the network
boot protocol. The configuration and enablement of iSCSI and FCoE are
controlled separately.
Wake on LAN: This option enables or disables server power-on using an
in-band magic packet.
Link Speed: This option is the link speed of the NIC. This field is read only
and cannot be modified by the user.

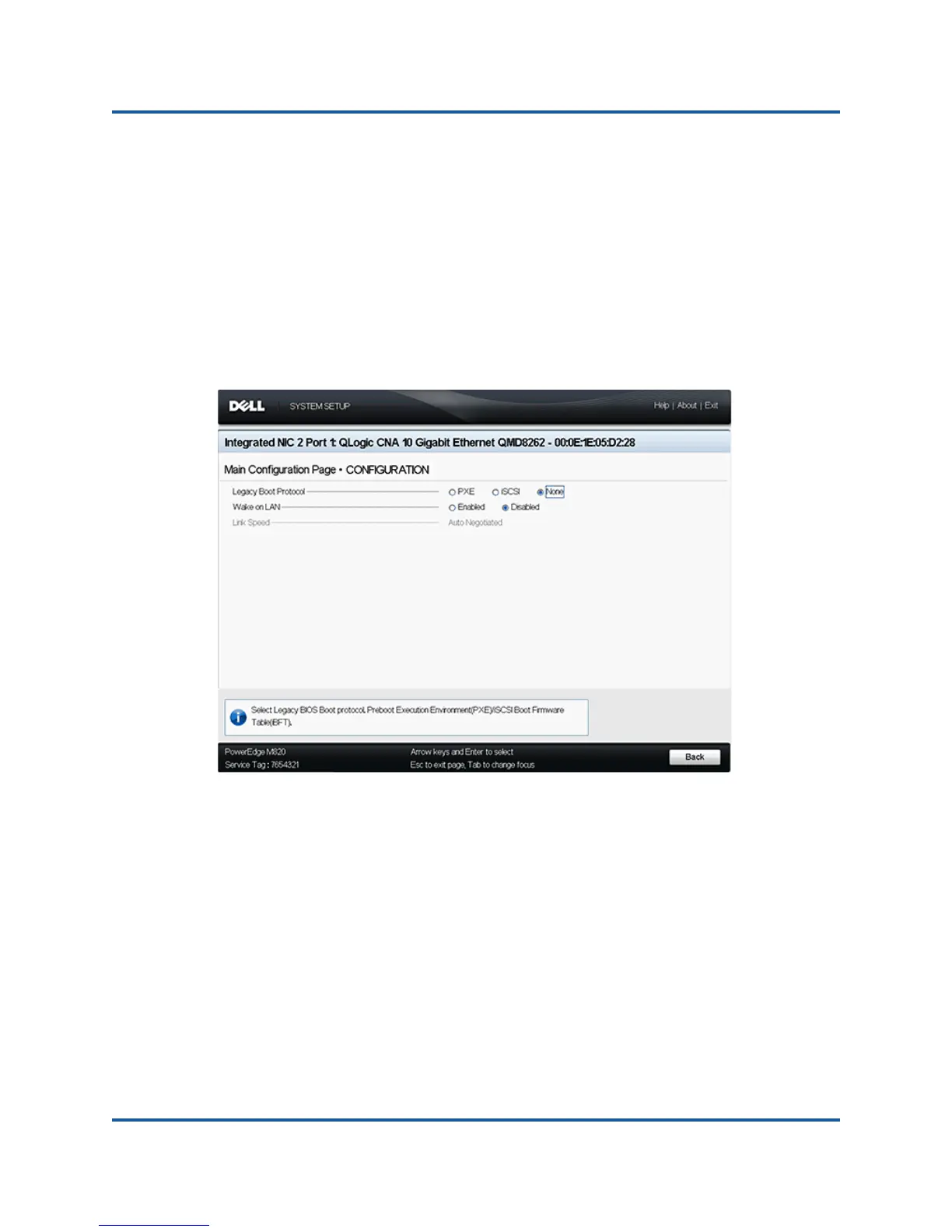

Figure 5-5. NIC Configuration
