4–Switch Independent Partitioning
Switch Independent Partitioning Setup and Management Options
143 CU0354602-00 L
5. Select Global Bandwidth Allocation to open the Global Bandwidth
Allocation page (see Figure 4-7).

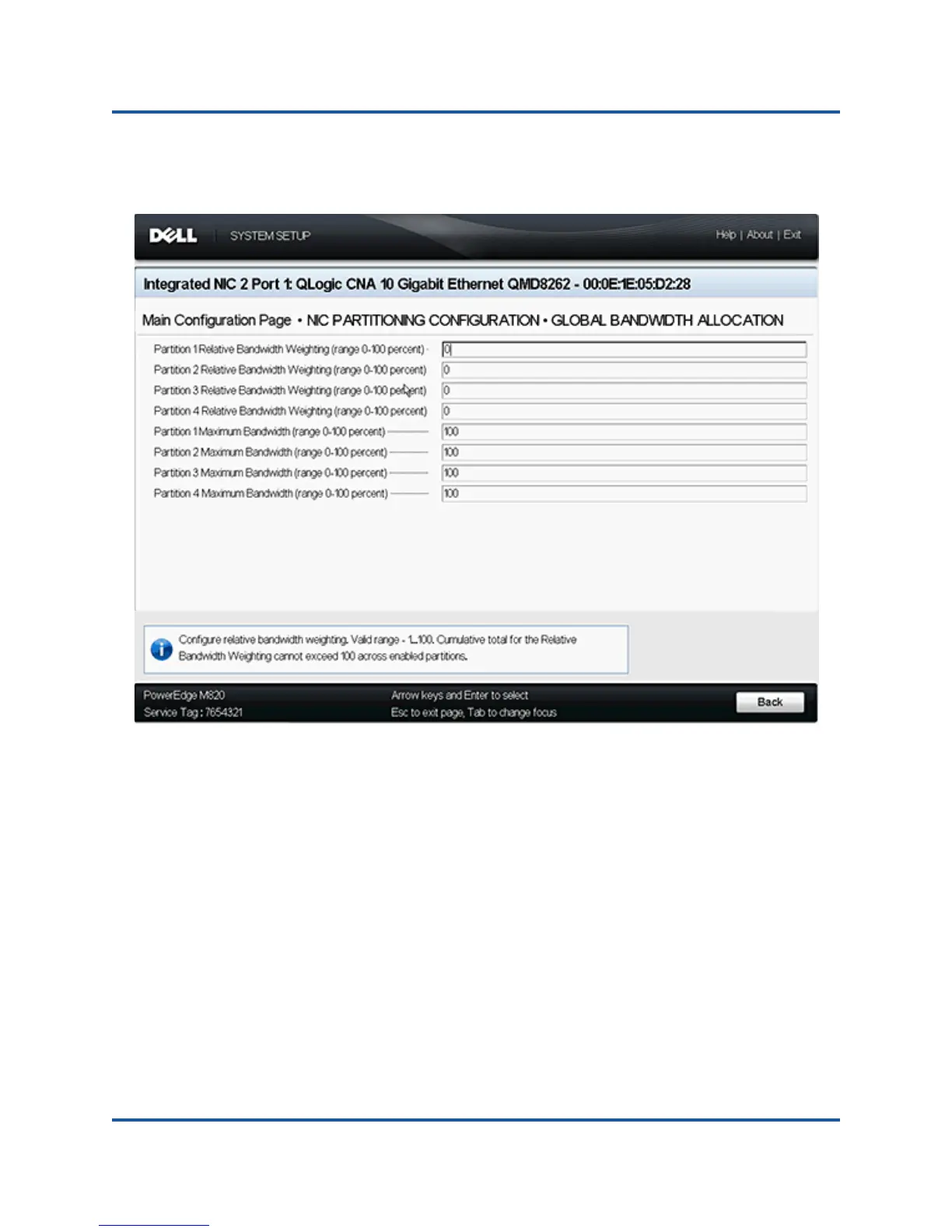

Figure 4-7. Global Bandwidth Allocation Page
6. Set the relative and maximum bandwidth (between 0-100 percent) as
needed for each partition.
The relative bandwidth setting guarantees that at least this much
bandwidth is available to the partition.
The cumulative relative bandwidth settings per port
(partitions 1–4) must not exceed 100 percent.
This is software enforced.
The maximum bandwidth setting enforces a bandwidth ceiling over
which the partition cannot subscribe.
The adapter supports oversubscription.
Oversubscription allows for the sum total of the maximum
bandwidth settings to equal greater than 100 percent of the total
available bandwidth of the port.
