Dell QMD8262-k

4–Switch Independent Partitioning
Switch Independent Partitioning Setup and Management Options
150 CU0354602-00 L
3. Select the NIC Partitioning (Switch Independent Partitioning) tab. The NIC
Partitioning Configuration page displays configuration details that apply to
the selected Switch Independent Partitioning configuration and personality
options (see Figure 4-15).

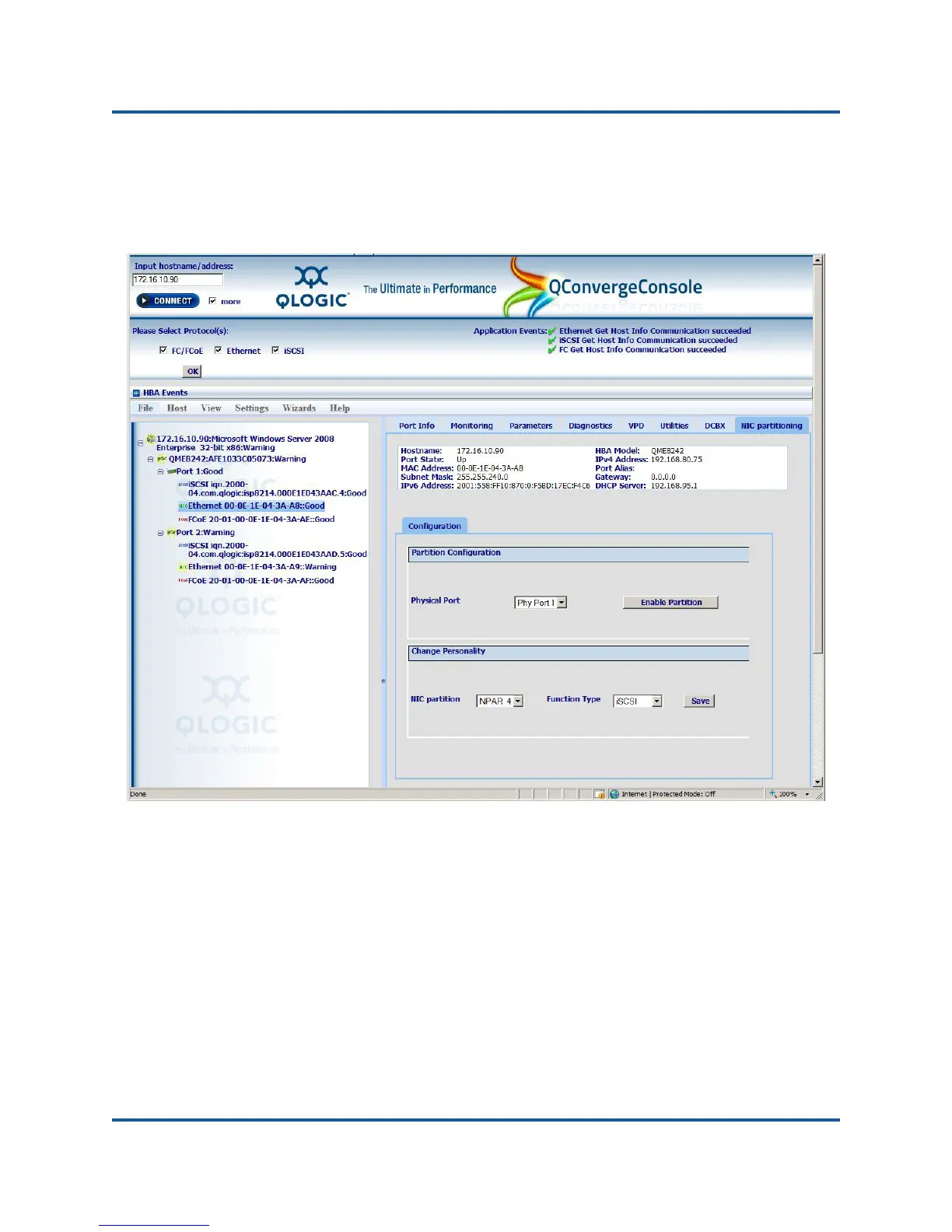

Figure 4-15. NIC Partitioning (Switch Independent Partitioning) Configuration Page
4. Select the physical port you want to configure from the Physical Port
drop-down list.
5. If you want to change its function type, select the NIC partition and select the
appropriate protocol from the Function Type drop-down list.
6. Click Save to save any changes.
The Security Check dialog box might appear. In the Enter Password box,
type the password and then click OK.
7. Reboot the operating system to apply the changes.
