Dell S4810 Installing Guide

12 | The S4810 System
www.dell.com | support.dell.com
• Hot-swappable redundant power supply
• Support for mixed power supply types
• 19-inch rack-mountable
• Standard 1U chassis height
• Up to 128K MAC address entries supported with hardware assisted aging
• Supports 12K jumbo frames
Ports
• External Serial RS-232 port (RJ45 type)
• Forty-eight 10Gbps SFP+ ports for a 1G/10G transceiver
• Four 40Gbps QSFP+ ports for a 40G transceiver
System Status
You view S4810 status information in several ways, including Light Emitting Diodes (LEDs) and boot
menu options. You can also view status information through the Command Line Interface (CLI) show
commands and with Simple Network Management Protocol (SNMP) traps. For more information about
these options, refer to the FTOS Command Line Reference Guide for the S4810 System and the FTOS
Configuration Guide for the S4810 System.
LED Displays
As shown in
Figure 2-3 , the S4810 includes LED displays on the I/O side of the chassis. When the S4810
powers up or reloads, the PSU LED is solid yellow.

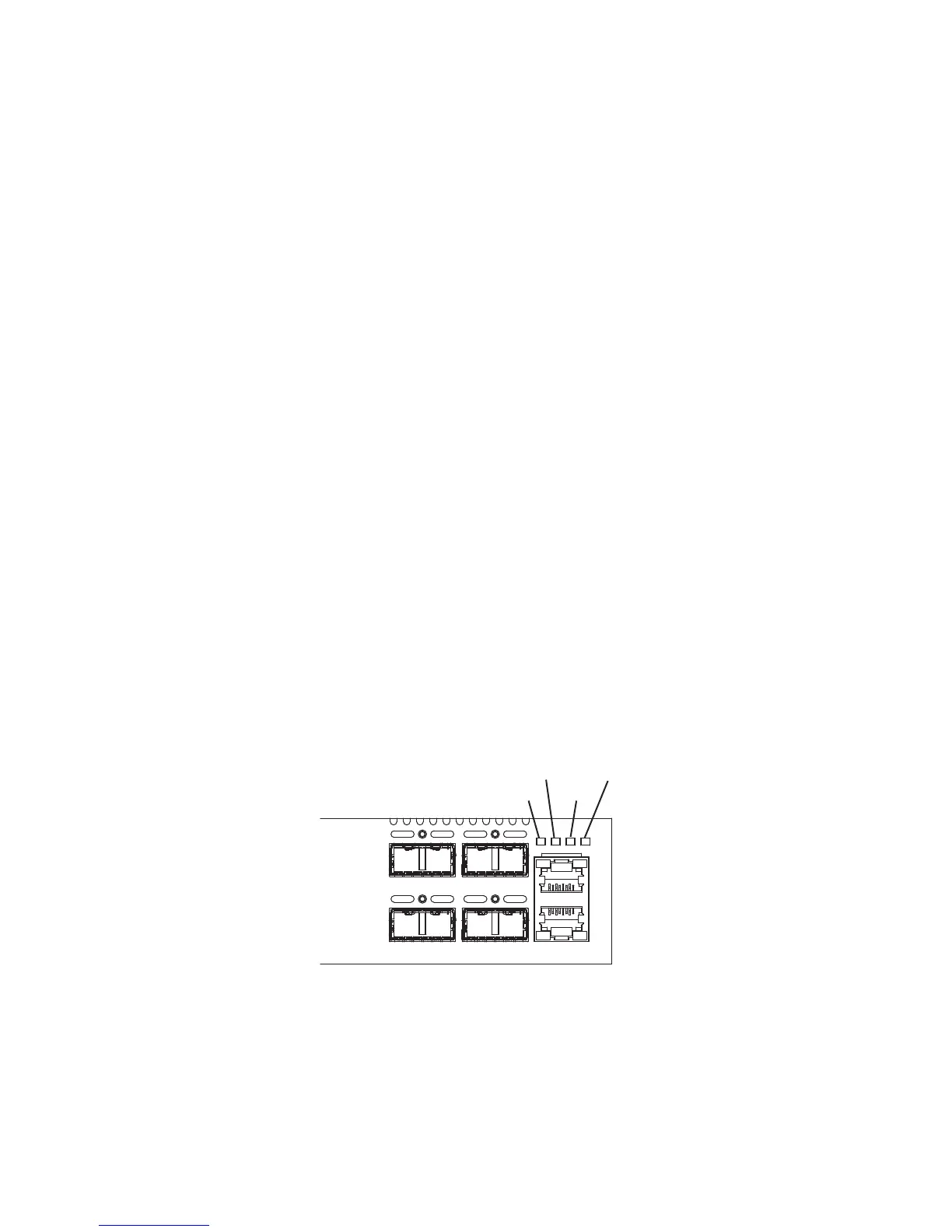

Figure 2-3. S4810 LEDs
The S4810 system LEDs are:
• System status (SYS)
• Stack Master indicator (MASTER)
• Fan status (FAN)
SYS
MASTER
FAN
PSU

Dell S4810 Specifications

General

Ports	48 x 10GbE SFP+
Uplink Ports	4 x 40GbE QSFP+
Switching Capacity	1.28 Tbps
Rack Units	1U
Product Type	Switch
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Supply	Dual, hot-swappable
MAC Address Table Size	128, 000 entries
Routing Protocol	OSPF, BGP, RIP, PIM, VRRP
Remote Management Protocol	SNMP
Features	VLAN, QoS
Humidity	10% to 90% non-condensing
Dimensions (WxDxH)	43.9 x 46.5 x 4.3 cm
