Dell S4810 Installing Guide

The S4810 System | 9
2
The S4810 System
Introduction
The Dell Force10 S4810 platform has 640Gbps switching bandwidth. It supports forty-eight 10GbE
SFP+ ports, four 40GbE QSFP+ ports, and two power supplies for redundancy. For system access, the
S4810 includes an RS-232/RJ-45 console port and a management port. The S4810 Power Supply Unit
(PSU) side (
Figure 2-1 ) contains the PSU and fan modules. The S4810 Input/Output (I/O) side
(
Figure 2-2 ) contains the 48 1G/10G SFP+ auto-sensing ports, four 40G QSPFP ports, management ports,
and stacking identification.

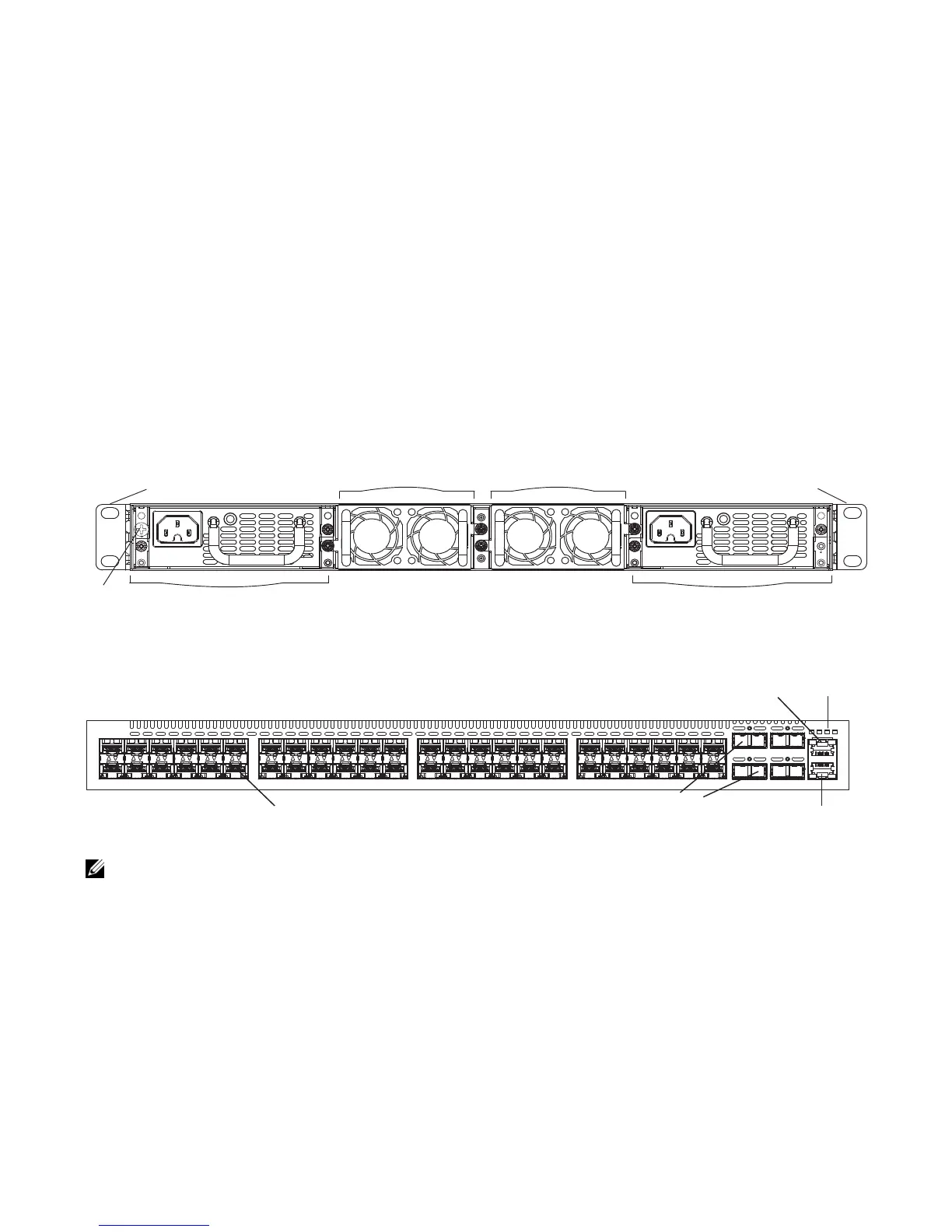

Figure 2-1. S4810 PSU-Side View
Figure 2-2. S4810 I/O-Side View
NOTE: The SFP+ ports ( Figure 2-2 ) are labeled 0-47. When you cable these ports, be sure not to interfere
with the airflow from the small vent holes above and below the ports.
PSU0
PSU1
Power Supply (PSU0) Power Supply (PSU1)
Fan Module 0 Fan Module 1
Mounting Bracket Mounting Bracket
Grounding
Screw
1G/10G SFP+ Ports
RS-232/RJ-45
Console Port
System
LEDs
Management
(Ethernet) Port
40GE QSFP+
Ports

Dell S4810 Specifications

General

Ports	48 x 10GbE SFP+
Uplink Ports	4 x 40GbE QSFP+
Switching Capacity	1.28 Tbps
Rack Units	1U
Product Type	Switch
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Supply	Dual, hot-swappable
MAC Address Table Size	128, 000 entries
Routing Protocol	OSPF, BGP, RIP, PIM, VRRP
Remote Management Protocol	SNMP
Features	VLAN, QoS
Humidity	10% to 90% non-condensing
Dimensions (WxDxH)	43.9 x 46.5 x 4.3 cm
