10 Disassembly and reassembly
Disassembly and reassembly
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
Phillips screwdriver #0
Phillips screwdriver #2
Nut driver 5 mm
Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then place
them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when the
component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

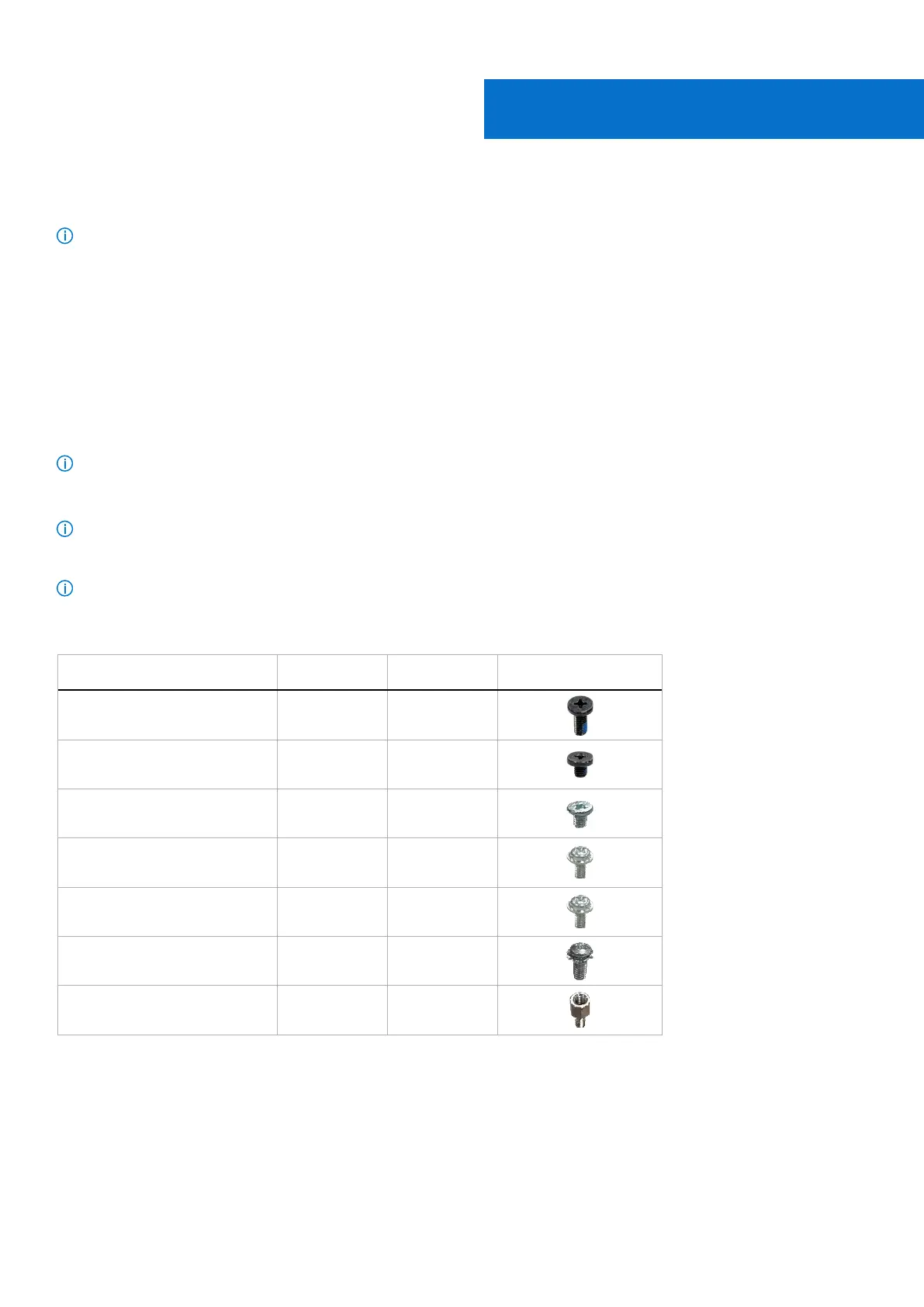

Table 3 Screw list
Component Screw type Quantity Screw image
Back cover VESA M4x10 4
Back cover hinge M4x4.5 2
Hinge bracket M3x4 2
Interface board M3x6 2
Power board M3x6 2
Power-board grounding M4x9 1
VGA port #4-40x11.8 2
6
