Disassembly and reassembly 27
Power board
Removing the power board
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the VESA cover.
4. Remove the back cover.
5. Remove the keypad board.
6. Remove the chassis assembly.
7. Remove the interface board.
Steps
1. Disconnect the lightbar cable from the connector on the power board.

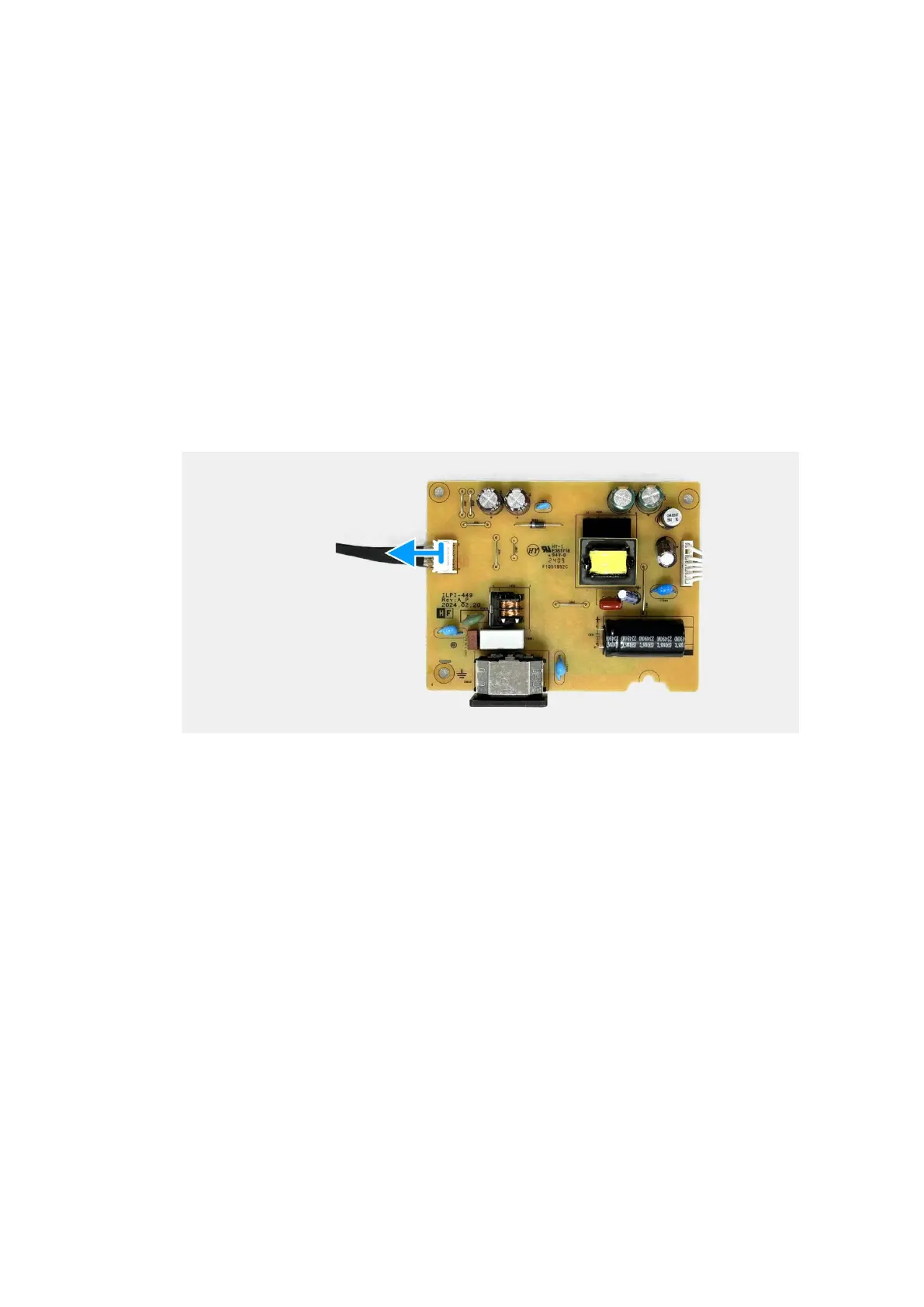

Figure 25. Removing the power board
