18 Disassembly and reassembly
Installing the keypad board
Steps
1. Align and place the keypad board onto the front bezel.
2. Adhere the keypad cable on the panel shielding.
3. Connect the keypad cable to the connector on the interface board. Close the latch after connecting the keypad cable to the
connector.

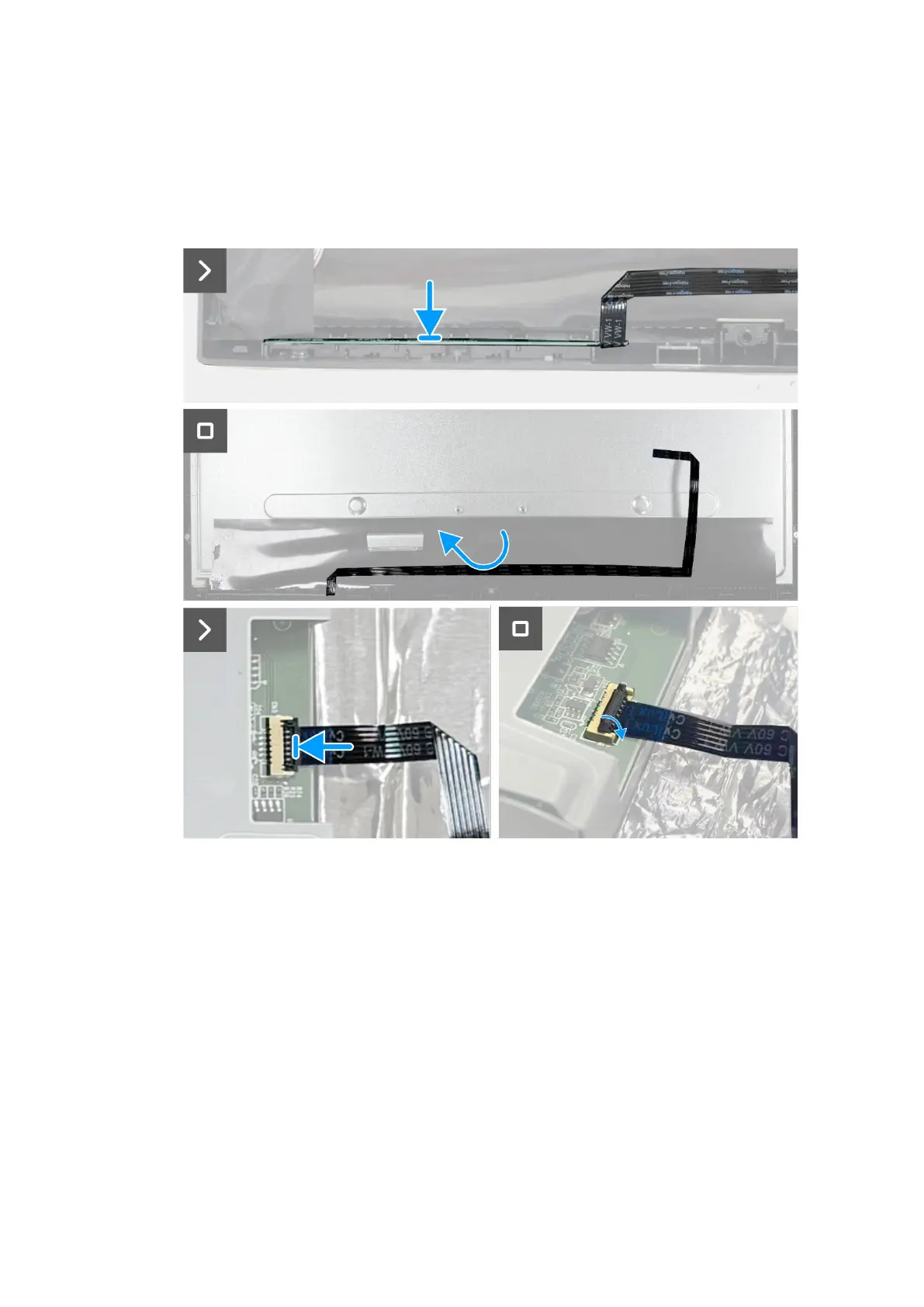

Figure 16. Installing the keypad board
Next steps
1. Install the back cover.
2. Install the VESA cover.
3. Install the stand.
4. Follow the procedure in After working inside your monitor.
