164 Removing and Installing Parts

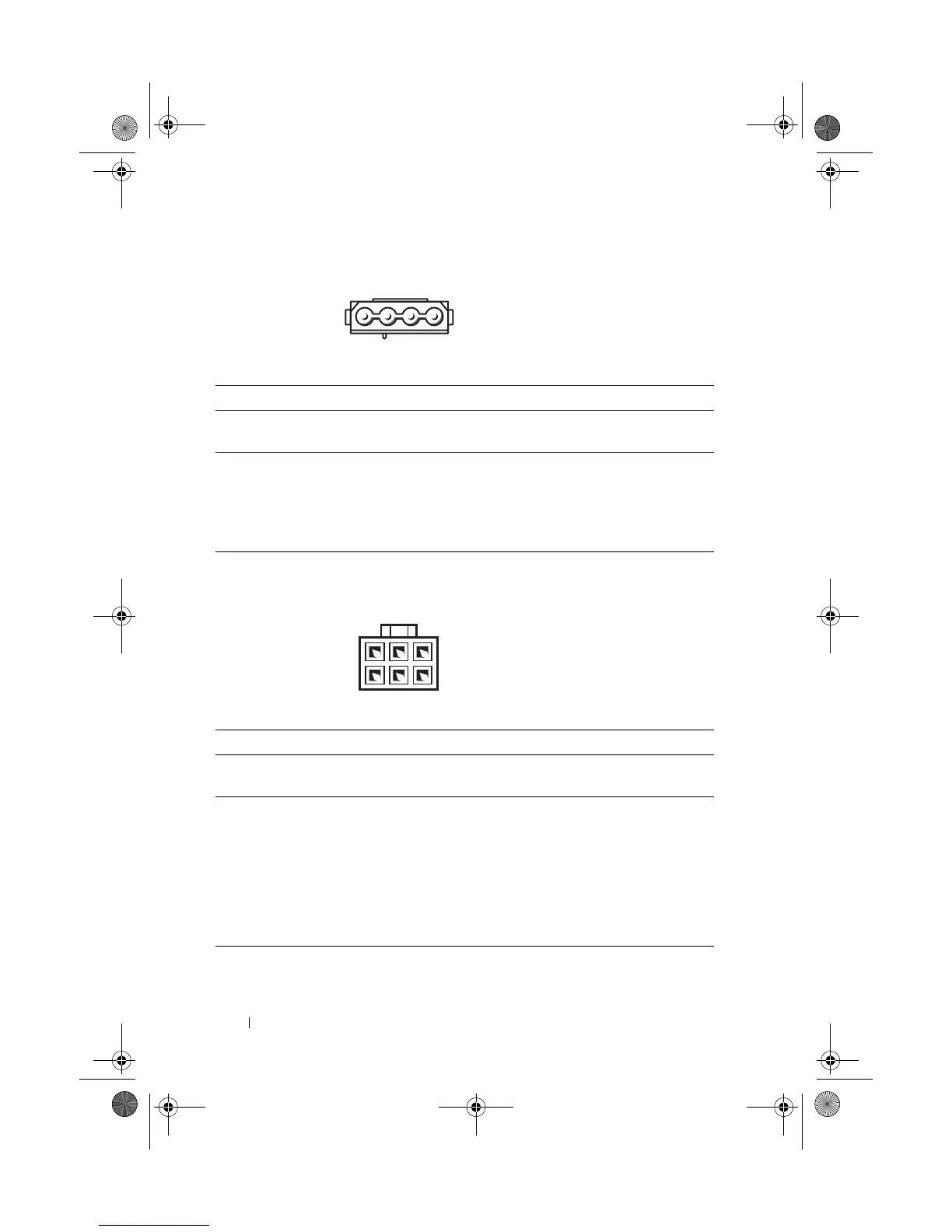

DC Power Connectors P10
DC Power Connectors P12
375-W Power Supply 425-W Power Supply
Pin Number Signal name 18-AWG Wire
Color
Signal name 18-AWG Wire
Color
1 +12 VA DC Yellow +12 VB DC White
2 COM Black COM Black
3 COM Black COM Black
4 +5 V DC Red +5 V DC Red
375-W Power Supply 425-W Power Supply
Pin Number Signal name 18-AWG Wire
Color
Signal name 18-AWG Wire
Color
1 +12 VB DC White +12 VC DC Blue/White
2 +12 VB DC White +12 VC DC Blue/White
3 +12 VB DC White +12 VC DC Blue/White
4 COM Black COM Black
5 COM Black COM Black
6 COM Black COM Black
1234
123
465
