Delta Electronics Network Device VFD-S User Manual

Chapter 2 Installation and Wiring|VFD-S Series
Revision August 2008, SE09, SW V2.61 2-31

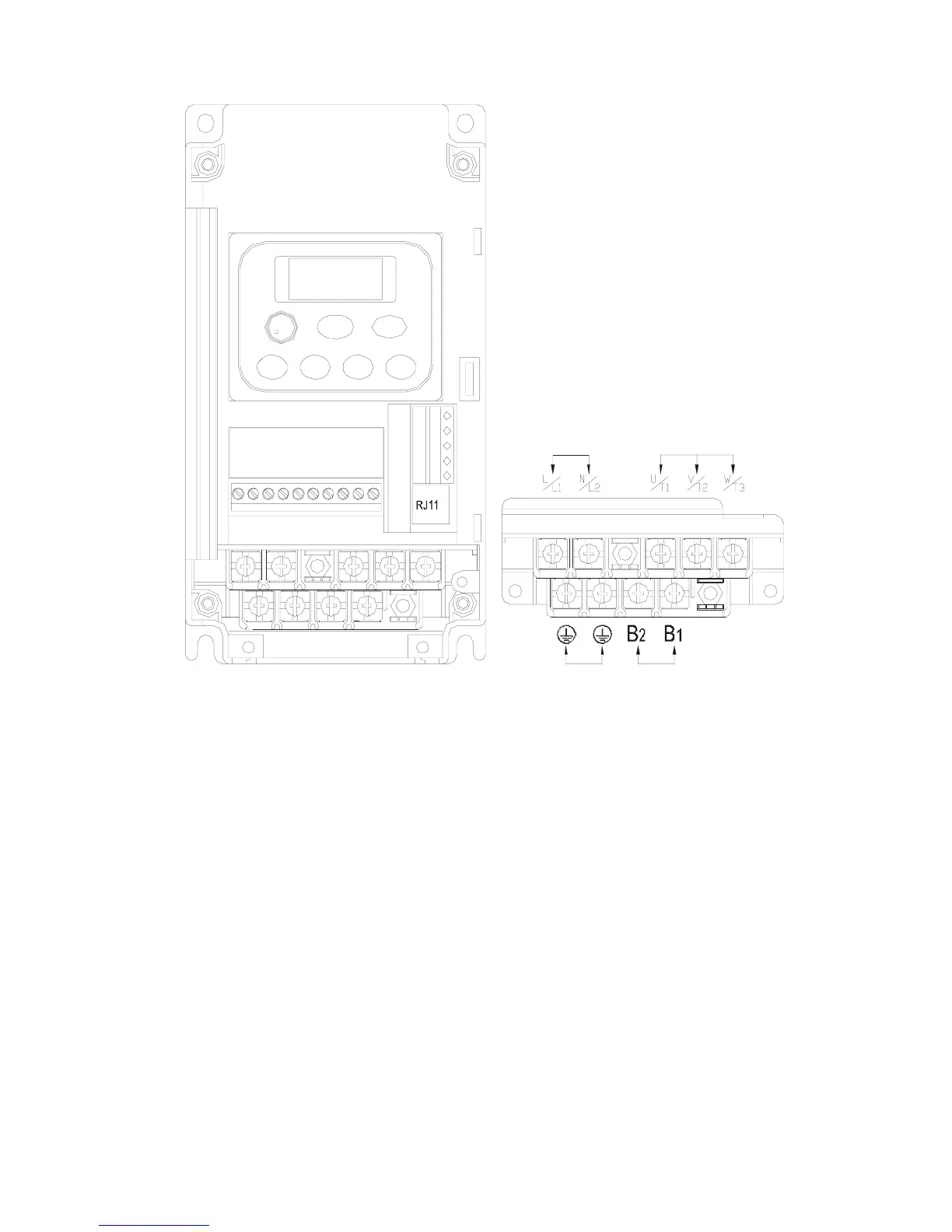

VFD007S11A/B
AC Input Line
Terminal
Power terminal
Moto r
Conne ction
Brake Resistor
Ground
Power Terminal:
Torque: 20 kgf-cm (17.4 lbf-in)
Wire Gauge: 10-18 AWG (5.3-0.8mm
2
)
Wire Type: stranded copper only, 75
o
C
