Chapter 2 Installation and Wiring|VFD-S Series
2-32 Revision August 2008, SE09, SW V2.61
VFD015S21U/43D/43E/43U, VFD022S21U/23D/43D/43E/43U
AC Input Line
Te r m in a l

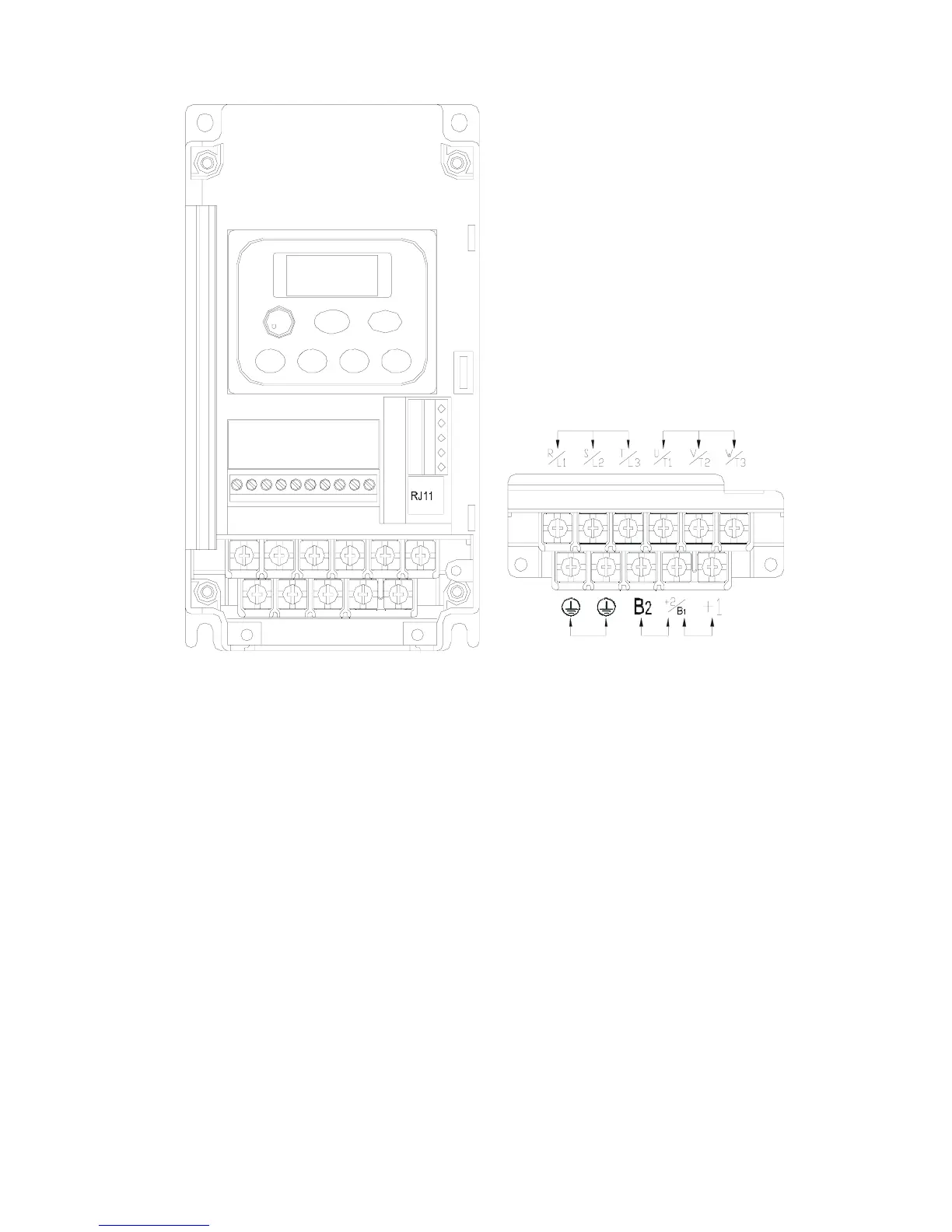

Power terminal
Motor
Connection
DC Reacto rBrake
Resistor
Ground
Power Terminal:
Torque: 20 kgf-cm (17.4 lbf-in)
Wire Gauge: 10-18 AWG (5.3-0.8mm
2
)
Wire Type: stranded copper only, 75
o
C
