Fig__P

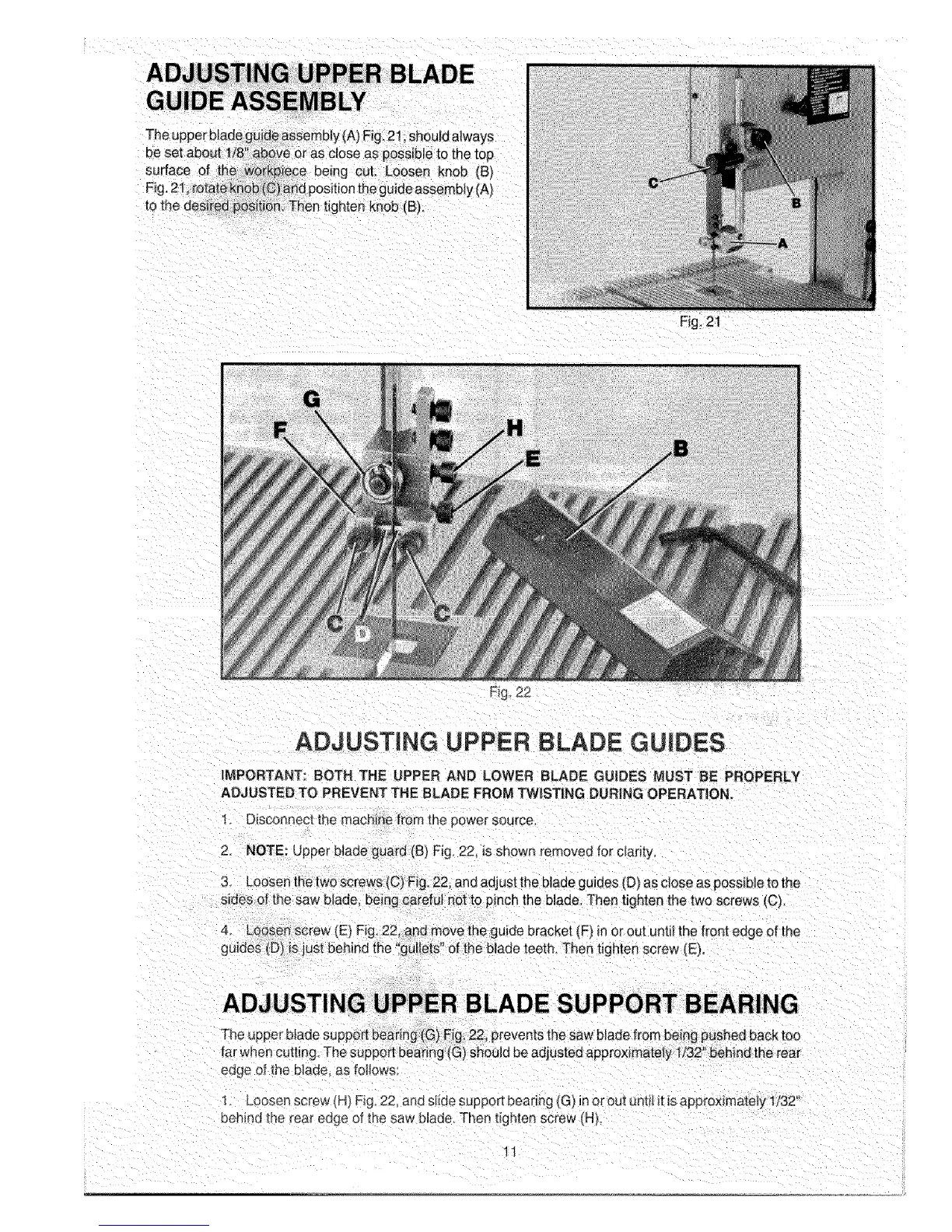

ADJUSTING UPPER BLADE GUIDES
iMPORTANT: BOTH THE UPPER AND LOWER BLADE GUIDES MUST BE PROPERLY
ADJUSTED TO PREVENT THE BLADE FROM TWISTING DURING OPERATION.
1. D_sconnec__he machine from me pewer source.
2_ NOTE: Upper biade gJara (B) Fig. 22, _sShOWnremoved for clarity.
3, Loosen the two screws (C) Fig. 22, and adjust the blade guides (D) as close as possible to the
sides of the saw blade, being carefu} not 1o pinch the blade Then tighten the two screws (C),
4, Loosen screw (E) Fig. 22 and move the guide bracket (F) in or out unti! the front edge r_fthe
guides tD_ is just behind the gulJets of the t_lade teeth Then t ghten screw (E)
ADJUSTING°p soppo,b aringUPPER(G>Fig.BLADEpreventsSUPPORTsawbei gBEARING
The r blade 22, the blade from pushed back too
far when cuffing. The support bearing (G_should be adiusted appro×imately 1/;32_'behind the rear
eage of the blade, as follows:
1. Loosen screw _H_Fig 22. and slide support bearing (G] in or out until it is approximately 1/32'
eenmd the rear edge of the saw blade. Then tighten screw (HL
11
