Delta 36-6022 - Pedal Assembly

14 15
ASSEMBLY

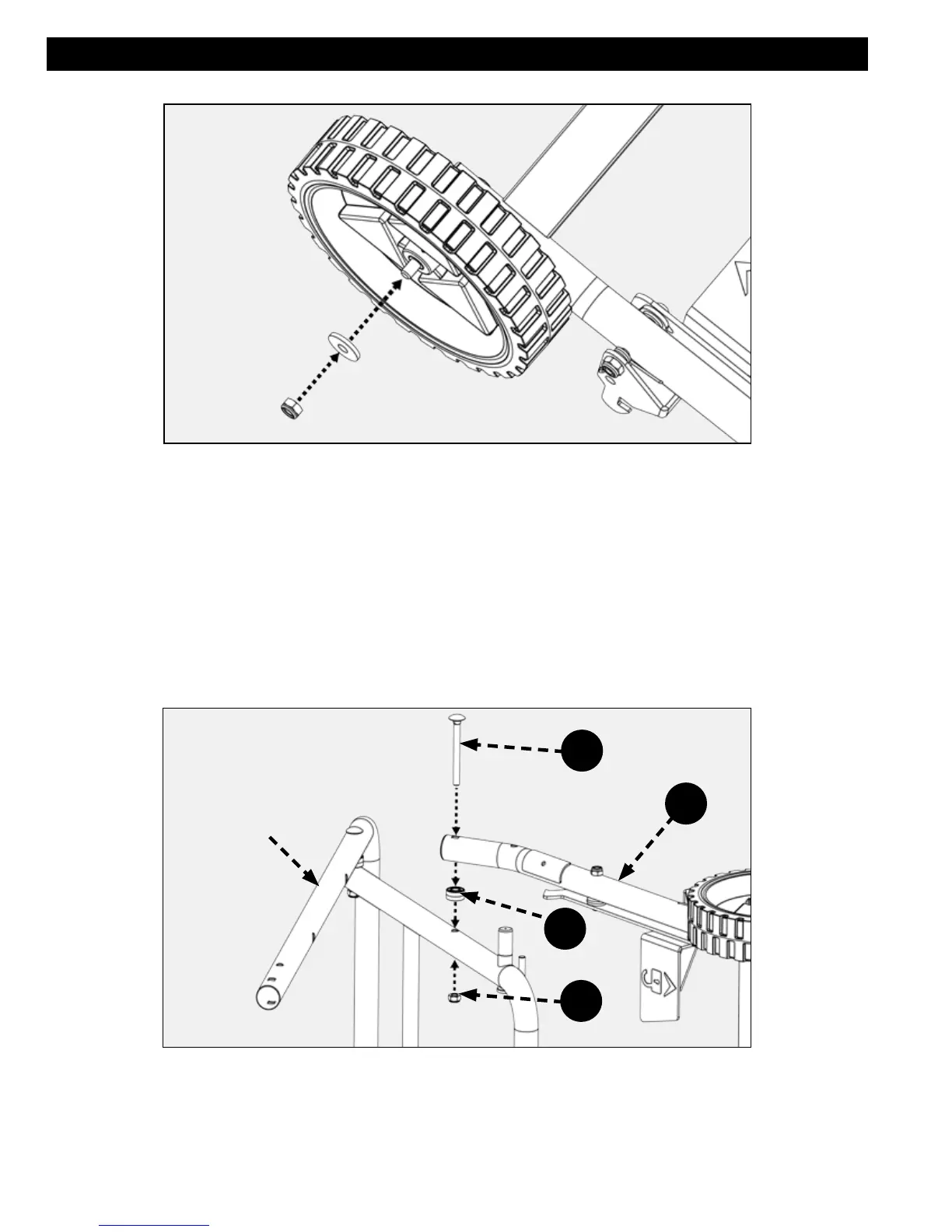

FIGURE 7
PEDAL ASSEMBLY
Slide the wheels over axles and secure using the two washers and M8 lock nuts.
See Figure 7.
Attach the pedal assembly (D) to the upper stand assembly using two M8 x 75 Carriage screws (ee), spacers (cc)
and M8 lock nuts (dd). See Figures 8 & 9 to verify the correct orientation of the pedal assembly (C) to the upper stand
assembly.
FIGURE 8
UPPER
STAND
ASSEMBLY
ee
D
dd
cc
