Delta AH Series User Manual

AH Motion Controller – Operation Manual
7-48
_7

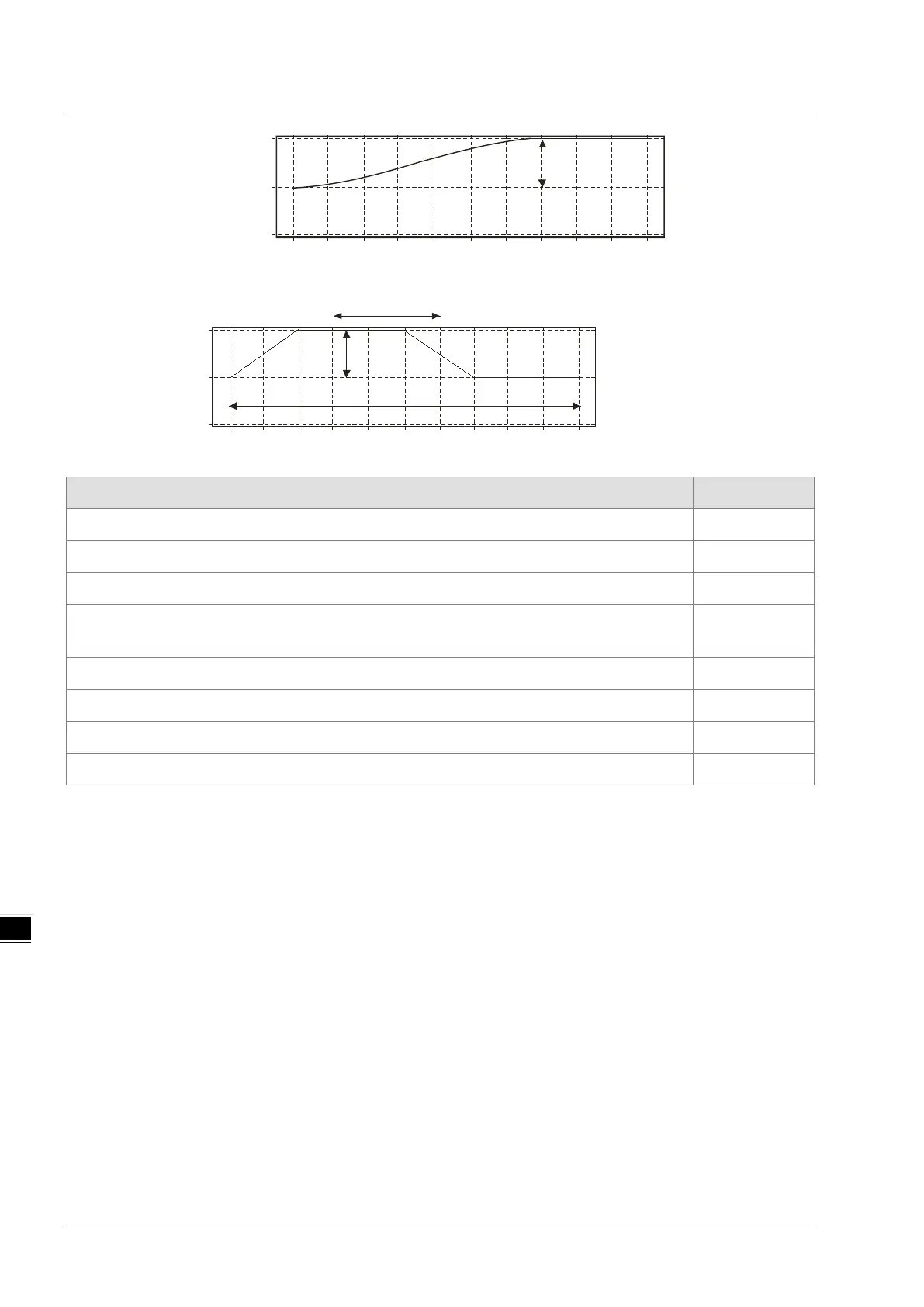

Displacement
500
0
-500
0
100
200 300 400 500
600
700
800
900
1,000
Distance for which the slave
axis specified moves: 500
Angle
Velocity
1
0
-1
0
100
200 300
400
500
600
700
800
900
1,000
Distance for which the axis specified is
synchronized with the master axis specified:300
Distance for which the master
axis specified moves:1,000
Synchronization ratio of the speed of the slave axis
specified to the speed of the master axis specified: 1.0
Angle
Parameter Setting value
Distance for which the master axis specified moves 1000
Distance for which the slave axis specified moves 500
Distance for which the slave axis specified is synchronized with the master axis specified 300
Synchronization ratio of the speed of the slave axis specified to the speed of the master axis
specified
1.0
Maximum ratio of the speed of the slave axis specified to the speed of the master axis specified 10.0
Acceleration curve 0
Cam curve 0
Concatenation 0
【Steps】
 Download the program created to an AH Motion Controller CPU, and then execute the program.
 After M1 is set to True, a rotary cut curve will be created.
【Program in ISPSoft】
