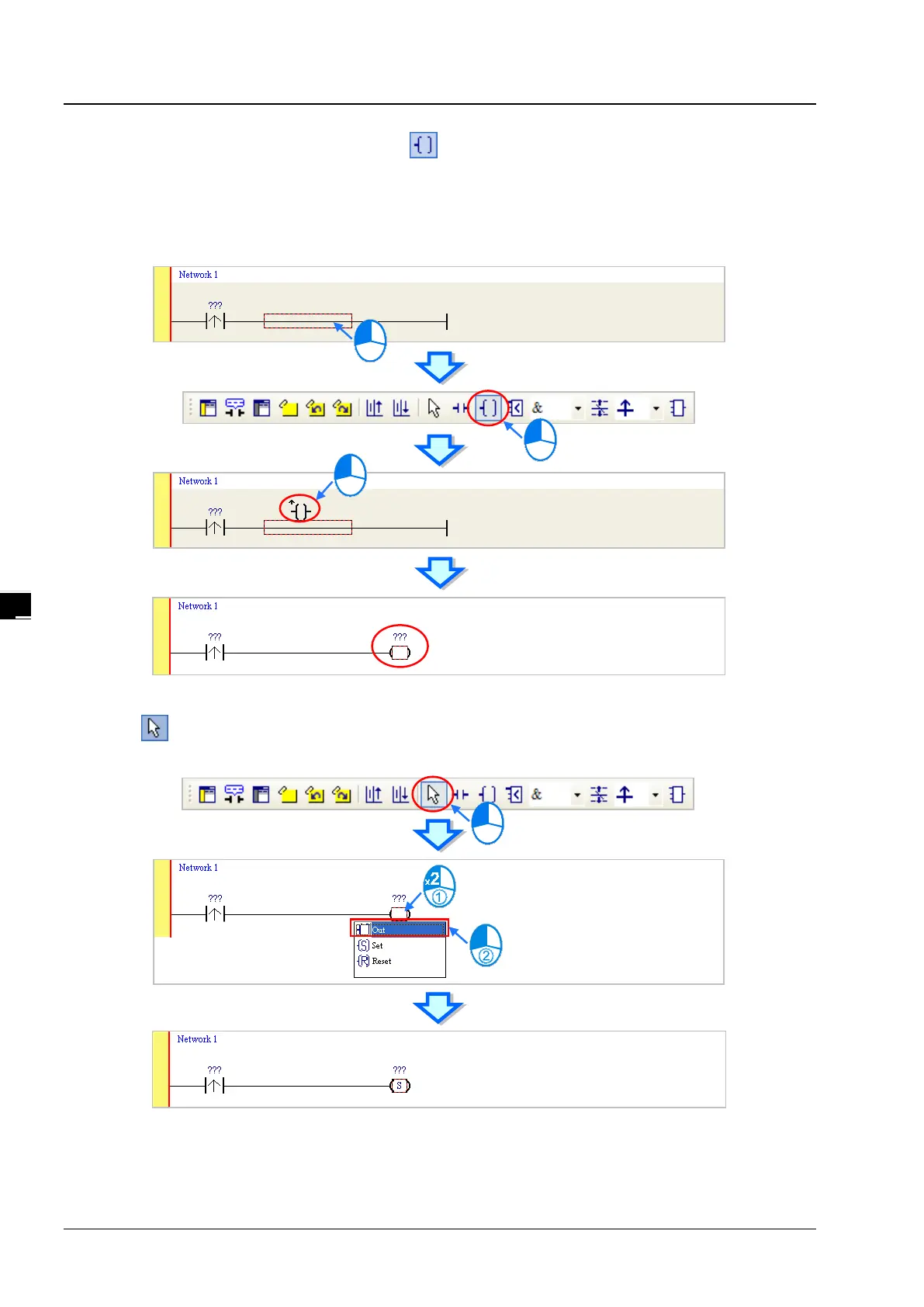

(3) Click the line at the right side of the contact, click on the toolbar, and move the mouse cursor to the red frame.
Likewise, the mouse cursor appears as a coil when the mouse cursor is above or under the red frame. Users can
decide where to insert the coil.
In this example, you do not need to decide where to insert the coil. Therefore, the mouse cursor can be near the red
frame, and you can click the left mouse button.
(4) Click
on the toolbar, or press Esc on the keyboard. After the coil is double-clicked, a drop-down list will appear.
The items on the drop-down list are Out, Set, and Reset. In this example, Set is selected.
