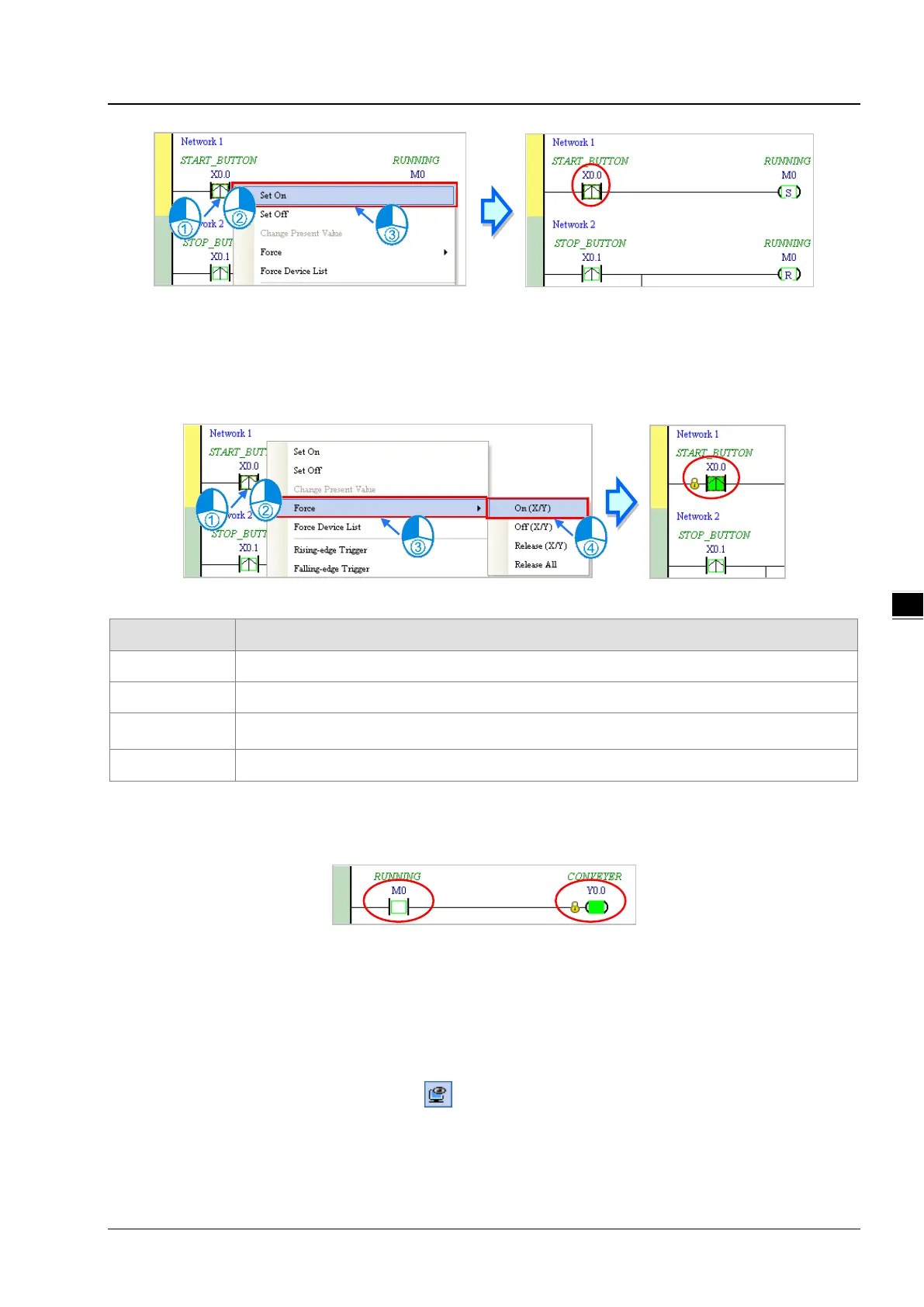

However, an input contact can be forced ON or OFF during a test. You can click an input contact or output contact which
will be set, right-click the contact, point to Force on the context menu, and select On (X/Y), Off (X/Y), Release (X/Y), or
Release All. If an input contact or output contact is forced ON or OFF, a lock symbol will appear at the left side of the
contact.
Forcing the input contact or output contact selected ON
Forcing the input contact or output contact selected OFF
Release (X/Y) Releasing the contact from the locked state
Releasing all the contacts from the locked states
If an output contact in the program is forced ON or OFF, the output state of this contact will not be affected by the program
execution result.
*. If the online monitoring function is disabled, the contacts will not be automatically released from the locked states. As a
result, you have to check whether the contacts need to be released from the locked states after the test is complete.
There are two ways to create a monitoring table. You can create a monitoring table online or offline.
Method 1
Click New Devices Table on the PLC menu, or
on the toolbar.
